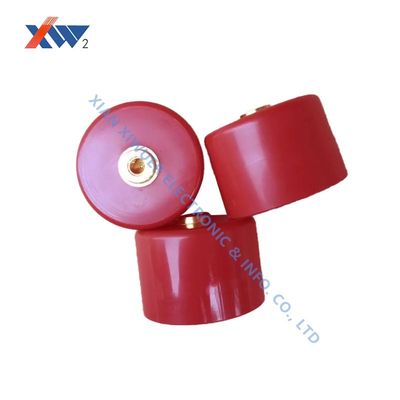

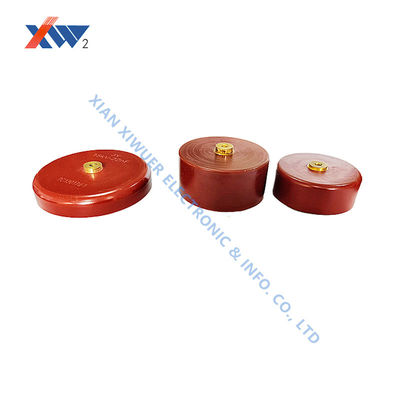

The full life cycle value of high-voltage door handle capacitors in coupling devices

  • The full life cycle value of high-voltage door handle capacitors in coupling devices
  • The full life cycle value of high-voltage door handle capacitors in coupling devices
Place of Origin XIAN, CHINA
Brand Name XIWUER
Certification ISO9001,ISO14001,ISO45001
Minimum Order Quantity 1pcs
Price Negotiable
Packaging Details Carton
Delivery Time 5-7days
Payment Terms L/C,T/T
Supply Ability 4,000,000 pcs a year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Highlight

high voltage doorknob capacitors for coupling

,

HV door handle capacitors with warranty

,

coupling device high voltage capacitors
You can tick the products you need and communicate with us in the message board.
Leave a Message
Product Description

The full life cycle value of high-voltage door handle capacitors in coupling devices


Drawing:
The full life cycle value of high-voltage door handle capacitors in coupling devices 0

Parameters:

No. Specification Dissipation Withstanding voltage Insulation resistance Dimension(mm)
1 20kV-2000pF








≦0.0040








1.5Ur● 1min








≧1.0×105MΩ

 D H L D M
2 20kV-10000pF 45 19 23 12 5
3 20kV-18000pF 65 15 19 12 5
4 30kV-1000pF 80 17 25 12 5
5 30kV-2700pF 45 24 32 12 4
6 30kV-12000pF 60 20 28 12 4
7 40kV-150pF 20 33 41 8 4
8 40kV-500pF 28 33 41 8 4
9 40kV-7500pF 80 24 29 12 6
10 40kV-10000pF 80 22 26 16 5
11 50kV-1000pF 50 30 34 12 4
12 50kV-1000pF 32 27 31 16 5
13 50kV-5600pF 80 31 35 16 5
14 60kV-1500pF 50 31 34 12 5
15 60kV-3000pF 65 32 35 16 5
16 100kV-500pF 50 54 58 12 5
17 100kV-2000pF 51 32 35 16 5
18 Insulator type 100kV-1500pF 68 36 40 16 5
19 150kV-820pF 65 95 100 12 5
20 200kV-600pF 50 90 94 16 5


In industrial and scientific fields like power communications and condition monitoring, high-voltage coupling devices are critical nodes for ensuring data connectivity and system controllability. For equipment manufacturers and system integrators, purchasing decisions are shifting from a single "initial component cost" to a more comprehensive "total cost of ownership" analysis. As the core of the coupling device, the value of high-voltage door handle capacitors goes far beyond their unit price, reflecting their profound impact on system performance, long-term reliability, and operational costs.


Case Study: Power Line Carrier Communication System
A communications equipment manufacturer used our customized high-voltage door handle capacitors in the coupling device of its next-generation distribution automation system. Despite a slight increase in the cost of each capacitor, the following were achieved:

The device's failure rate under harsh operating conditions decreased by over 80% over three years.

Thanks to its excellent temperature stability and low loss, the attenuation fluctuation range of the coupling channel was reduced by 60%, significantly improving communication link quality.

Taking into account the reduced after-sales maintenance costs and improved market reputation, this product series delivered a significant return on investment for the customer.

We sell more than just capacitors; we offer a commitment to reliability. We are committed to being your trusted partner, working together to build a stronger and smarter energy and information network.
