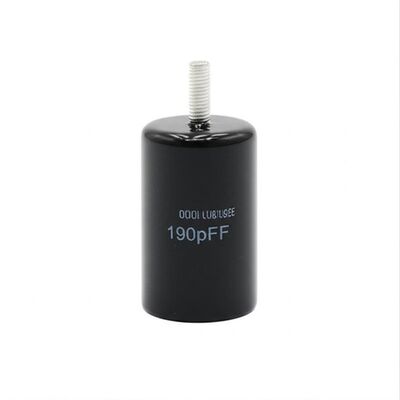

Ceramic High Voltage Doorknob Capacitor with 190pF Capacitance Compact Size and Low Dissipation Factor

  • Ceramic High Voltage Doorknob Capacitor with 190pF Capacitance Compact Size and Low Dissipation Factor
Place of Origin XIAN, CHINA
Brand Name XIWUER
Certification ISO9001,ISO14001,ISO45001,CCC
Model Number CT8-1-30kV-190pF
Minimum Order Quantity 1 piece
Price Negotiable
Packaging Details Carton
Delivery Time 5-7 days
Payment Terms L/C,T/T
Supply Ability 3,000,000 pcs a year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Rated Voltage 30kV Capacitance 190pF
Type High Voltage Capacitor Operating Temperature +85 °C (185 °F)~-55 °C (-67 °F)
Termination Style Screw
Highlight

190pF High Voltage Doorknob Capacitor

,

Compact Size Ceramic Doorknob Capacitor

,

Low Dissipation Factor HV Ceramic Capacitor
Leave a Message
Product Description

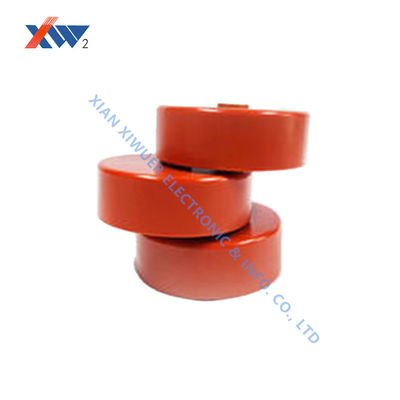

Ceramic High Voltage Doorknob Capacitors Screw Termination 190pF 30kV N4700
Product Description

High performance ceramic doorknob capacitors with screw termination, featuring 190pF capacitance and 30kV voltage rating with N4700 dielectric.

Key Features
  • Compact size with low dissipation factor
  • Low voltage coefficient
  • Up to 30kV DC working voltage
Applications
  • Lasers
  • Electron Microscopes and synchroscopes
Technical Parameters
Sq Model Number Dielectric Loss Withstand Voltage Insulation Resistance Dimension(mm) D H L M
120kV-2000pF≤0.0041.5Ur?60s≥1.0 x 106MΩ451923125
220kV-10000pF651519125
320kV-18000pF801725125
430kV-1000pF452432124
530kV-2700pF602028124
630kV-12000pF741826125
740kV-150pF20334184
840kV-500pF28334184
940kV-7500pF802429126
1040kV-10000pF802226165
1150kV-1000pF503034124
1250kV-1000pF322731165
1350kV-5600pF803135165
1460kV-1500pF503134125
1560kV-3000pF653235165
16100kV-500pF505458125
17100kV-2000pF513235165
18100kV - 1500pF(Insulator Type)683640165
19150kV-820pF6595100125
20200kV-600pF509094165
Company Overview

Xian Xiwuer Electronic and Info. Co., Ltd is a wholly state-owned company established in 1976 with:

  • Registered capital of CNY 101.465 million (USD15.85 million)
  • Total assets of CNY315 million (USD 49.22 million)
  • 460 employees with annual sales of CN280 million (USD43.75 million)
  • Four production bases covering 43052 square meters
  • 8 master's degree holders and 80 senior engineers
Main Products
  • Smart Embedded Epoxy Pole
  • Integrated Instrument Transformer
  • Capacitive Voltage Divider
  • Rogowski Coil
  • High Voltage Capacitor Rod
  • High Voltage Film Capacitor
  • High Voltage Resistor
  • Primary and Secondary Integrated Intelligent assembly and components
  • Medium-High Voltage components/parts/assembly
  • Surge Protective Device for Power Supply System
  • Chips for lightening devices
  • Zinc Oxide Varistor; Thermistor
Major Customers

ABB, Schneider, GE, ZTE, XD Electric, XJ Electric, PingGao Electric and etc.

The company has 32 patented technologies, 4 invention patents, and 4 national key new products. Certified with ISO9001, ISO14001, and ISO45001 standards, with UL, VDE, TUV, CAS, CE, CQC, RoHS, and REACH certifications.
