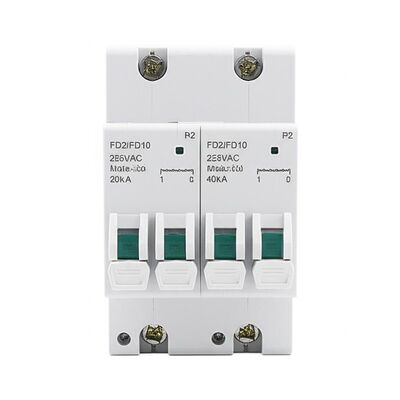

FD2/FD10 255VAC Surge Protective Device with 20kA Rated and 40kA Maximum Inrush Current for N-PE Protection

Name: FD2/FD10 255VAC Surge Protective Device with 20kA Rated and 40kA Maximum Inrush Current for N-PE Protection
Brand: XIAN XIWUER ELECTRONIC AND INFO. CO., LTD
SKU: FD2-255/20
Price: negotiable USD
Availability: InStock

Brand Name:	Qing Zhu
Model Number:	FD2-255/20
MOQ:	1 unit
Price:	USD, Negotiable, unit
Payment Terms:	L/C,T/T
Supply Ability:	4,000,000 units/year

Detail Information

Product Description

Detail Information

Place of Origin:

XIAN,CHINA

Certification:

UL,TUV,CCC,ROHS

Maximum Continuous Operating Voltage Uc(AC):

255V

Application:

N-PE Protection Of 220V/380V AC Power System

Alarm Indication:

Remote Alarm Available

Selling Units:

Single Item

Rated Inrush Current In(8/20 μs):

20kA

Maximum Inrush Current Imax(8/20μs):

40kA

Packaging Details:

Carton

Supply Ability:

4,000,000 units/year

Highlight:

255VAC Surge Protective Device

20kA Rated Inrush Current Surge Arrester

40kA Maximum Inrush Current Overvoltage Protector

Product Description

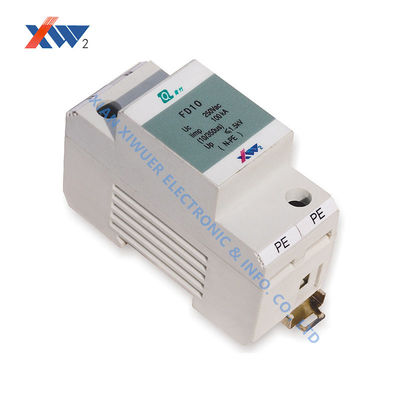

FD2/FD10 Power Surge Protective Device Single Phase Model 255VAC Surge Arrester

Product Description

FD2/FD10 power surge protective device single phase model 255VAC Surge Arrester provides reliable protection for electrical systems against power surges.

Key Features

Large energy absorption ability with low limit voltage
Fast response speed (≤25ns)
Hot state module replacement capability (FD2 model)

Application

FD2 and FD10 overvoltage protectors are designed for N-PE protection in 220V/380V AC power systems.

Technical Parameters

Model No.	FD2-255/20	FD2-255/40	FD2-255/60	FD10-255/80	FD10-255/100
Maximum continuous operating voltage Uc(AC)	255V	250V
Rated inrush current In(8/20 μs)	20kA	40kA	60kA	80kA	100kA
Maximum inrush current Imax(8/20μs)	40kA	60kA	100kA
Lightning impulse current (10/350μs)				80kA	100kA
Protection level Usn	1.5kV	1.8kV	1.8kV	1.5kV	1.5kV
Response time	100ns
Dimensions (mm)	1810567	3010567	359067	359067	359067
Installation method	For use with 35mm standard rail
Alarm indication	With remote arm available		With remote alarm available

Company Overview

Xian Xiwuer Electronic and Info. Co., Ltd is a wholly state-owned company established in 1976 with:

Registered capital: CNY 101.465 million (USD 15.85 million)
Total assets: CNY 315 million (USD 49.22 million)
460 employees with annual sales of CNY 280 million (USD 43.75 million)
Four production bases covering 43,052 m² with construction area over 50,000 m²
Highly qualified technical team including 8 master's degree holders and 80 senior engineers

Main Products

Smart Embedded Epoxy Pole
Integrated Instrument Transformer
Capacitive Voltage Divider
Rogowski Coil
High Voltage Capacitor Rod
High Voltage Film Capacitor
High Voltage Resistor
Primary and Secondary Integrated Intelligent assembly with voltage/current measurement, protection, temperature monitoring, and power supply functions
Medium-High Voltage components/parts/assembly
Surge Protective Device for Power Supply System
Chips for lightning devices
Zinc Oxide Varistor and Thermistor

Major Customers

ABB, Schneider, GE, ZTE, XD Electric, XJ Electric, PingGao Electric, etc.

Quality Certifications

The company maintains ISO 9001, ISO 14001, and ISO 45001 certifications with products meeting UL, VDE, TUV, CAS, CE, CQC, RoHS, and REACH standards.
