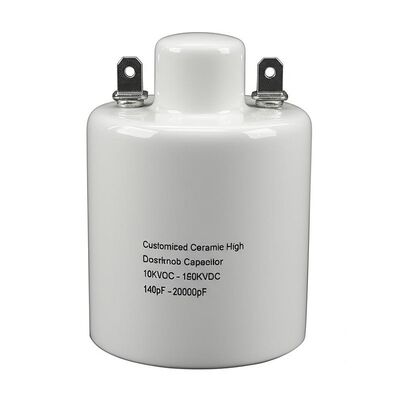

Customized Ceramic High Voltage Doorknob Capacitor 10KVDC-150KVDC 140pF-20000pF with 10% Capacity Accuracy

  • Customized Ceramic High Voltage Doorknob Capacitor 10KVDC-150KVDC 140pF-20000pF with 10% Capacity Accuracy
Place of Origin XIAN, CHINA
Brand Name XIWUER
Certification ISO9001,ISO14001,ISO45001,CCC
Model Number CT8-1-12kV-10000pF
Minimum Order Quantity 1 piece
Price Negotiable
Packaging Details Carton
Delivery Time 5-7 days
Payment Terms L/C,T/T
Supply Ability 3,000,000 pcs a year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Rated Voltage 12KVDC Threaded Terminals M4x0.7
Ceramic Dielectric N4700 (Class 1), Y5T, Y5U, Y5V Application Used In High Peak Current
Capacitance 140pF To 20000pF Capacitance Tolerance 5%(J),10%(K)
Highlight

10KVDC-150KVDC High Voltage Doorknob Capacitor

,

140pF-20000pF Ceramic Doorknob Capacitor

,

10% Capacity Accuracy HV Ceramic Capacitor
Leave a Message
Product Description
Customized Ceramic High Voltage Doorknob Capacitor With 10KVDC - 150KVDC 140pF - 20000pF
Product Description

High-performance doorknob capacitor with voltage range of 10KVDC-150KVDC and capacitance range of 140pF-20000pF.

Key Features
  • High frequency withstanding capability
  • Strong high-voltage pulse handling
  • Excellent temperature stability
  • High-temperature resistant resin construction (crack-resistant)
  • Standard mold production with short lead times
  • ±10% capacity accuracy
  • Fully customizable to customer specifications
Applications
  • High voltage doubler circuits
  • Voltage protection systems
  • Decoupling circuits
  • Laser generator components
  • DC storage high-frequency coupling
  • AC and DC filtering applications
Technical Specifications
Sq Model Number Dielectric Loss Withstand Voltage Insulation Resistance Dimension (mm) D H L D M
120kV-2000pF≤0.0041.5Ur ≥60s≥1.0 x 106MΩ451923125
220kV-10000pF651519125
320kV-18000pF801725125
430kV-1000pF452432124
530kV-2700pF602028124
630kV-12000pF741826125
740kV-150pF20334184
840kV-500pF28334184
940kV-7500pF802429126
1040kV-10000pF802226165
1150kV-1000pF503034124
1250kV-1000pF322731165
1350kV-5600pF803135165
1460kV-1500pF503134125
1560kV-3000pF653235165
16100kV-500pF505458125
17100kV-2000pF513235165
18100kV-1500pF(Insulator Type)683640165
19150kV-820pF6595100125
20200kV-600pF509094165
Company Overview

Xian Xiwuer Electronic and Info. Co., Ltd is a state-owned enterprise established in 1976 with:

  • Registered capital of CNY 101.465 million (USD15.85 million)
  • Total assets of CNY315 million (USD 49.22 million)
  • 460 employees
  • Annual sales income of CN280 million (USD43.75 million)
  • Four production bases covering 43,052 m²
  • Highly qualified technical team including 8 master's degree holders and 80 senior engineers
Core Product Lines
  • Smart Embedded Epoxy Pole
  • Integrated Instrument Transformer
  • Capacitive Voltage Divider
  • High Voltage Capacitor Rod
  • High Voltage Film Capacitor
  • High Voltage Resistor
  • Primary/Secondary Integrated Intelligent assemblies
  • Medium-High Voltage components
  • Surge Protective Devices
  • Zinc Oxide Varistors and Thermistors
Major Clients

ABB, Schneider, GE, ZTE, XD Electric, XJ Electric, PingGao Electric

Quality Certifications

ISO9001, ISO14001, ISO45001, UL, VDE, TUV, CAS, CE, CQC, RoHS, REACH

Manufacturing Capabilities
  • 32 patented technologies (4 invention patents)
  • 26m large sintering tunnel furnaces
  • 8 automatic assembly lines
  • Advanced testing laboratories
  • Imported equipment from Japan, USA, Germany, Korea, and Belgium
