33kV Automatic Circuit Recloser with Vacuum Arc Extinguishing 20KA Short-Time Withstand Current and Modbus/4G/DNP3 Communication

  • 33kV Automatic Circuit Recloser with Vacuum Arc Extinguishing 20KA Short-Time Withstand Current and Modbus/4G/DNP3 Communication
  • 33kV Automatic Circuit Recloser with Vacuum Arc Extinguishing 20KA Short-Time Withstand Current and Modbus/4G/DNP3 Communication
  • 33kV Automatic Circuit Recloser with Vacuum Arc Extinguishing 20KA Short-Time Withstand Current and Modbus/4G/DNP3 Communication
Place of Origin XIAN,CHINA
Brand Name XIWUER
Certification ISO
Model Number 33KV-630A
Minimum Order Quantity 1
Price Negotiable
Packaging Details Wooden Box
Delivery Time 25~30days
Payment Terms L/C,T/T
Supply Ability Available in Large Quantities

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Highlight

Vacuum Arc Extinguishing Automatic Circuit Recloser

,

20KA Short-Time Withstand Current Vacuum Circuit Breaker

,

Modbus/4G/DNP3 Communication 33kV Recloser
Leave a Message
Product Description

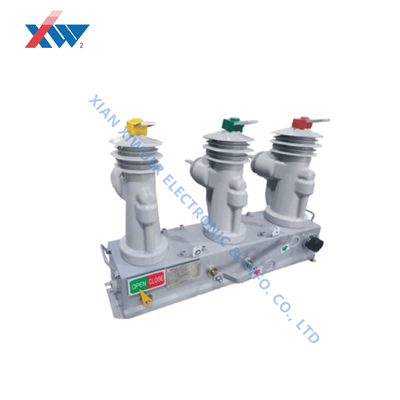

33kV Automatic Circuit Recloser
A vacuum circuit breaker is a high-voltage electrical device that uses vacuum as an arc-extinguishing medium and insulating medium to break and close current in circuits. This equipment is particularly suitable for frequent operations and challenging environments including high altitudes and low temperatures. Vacuum circuit breakers serve critical functions in opening and closing load current, overload current, and short-circuit current within power systems, making them essential protection and control equipment in distribution networks.
Technical Specifications
Component Specification
Rated Voltage 33kV
Rated Current 630A
Rated Short-time Withstand Current 20KA
Rated Power Frequency Withstand Voltage 190kV
Arc Extinguishing Medium Vacuum
Communication Protocols Modbus/4G/DNP3
Power Transformer 35KV/220V 50HZ
Key Features
  • Acquisition of three-phase voltage and zero-sequence voltage
  • Capture of three-phase and zero-sequence currents
  • Support for multiple communication protocols including Modbus, 4G, and DNP3
  • Designed for frequent operation cycles and harsh environmental conditions
Premium Component Advantage: The recloser utilizes high-voltage ceramic capacitors that deliver superior performance and require no maintenance for 20 years, ensuring long-term reliability and reduced operational costs.
