High Voltage Ceramic Capacitor Embedded Pole for ACR with 11KV 33KV 27KV Ratings
Product Details
| Highlight | 11KV High Voltage Ceramic Capacitor,33KV Embedded Pole Capacitor,27KV ACR Capacitor |
||
|---|---|---|---|
Product Description
Embedded Pole:11KV 33KV 27KV 38KV

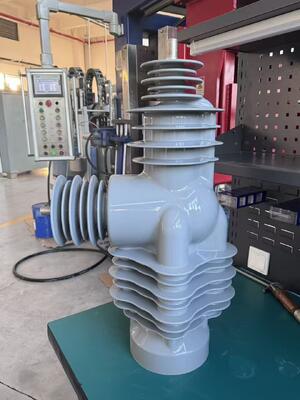

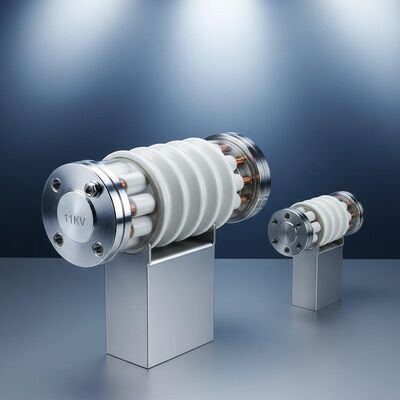

Ceramic Capacitors Embedded Pole for Outdoor Automatic Circuit Recloser (ACR) built with advanced ceramic capacitors instead of conventional film capacitors.
Key Features and Benefits
Complete Production Chain for Cost Leadership
- Vertically Integrated Manufacturing: Full control from components to finished equipment for optimized costs
- Proprietary Core Technologies: Closed bushing casting molds and independent casting capabilities
Industry-Leading Technological Innovations
- One of few manufacturers in China capable of mass-producing high-precision high-voltage ceramic capacitors
- Capacitor Secondary Voltage Module and Adapter Block Technology
- Complete Primary-Secondary Integration Technology System
- New Voltage Transformer Design with Power Taps, eliminating electromagnetic resonance hazards
Exceptional Environmental Adaptability
- Voltage Range: 11 kV to 40.5 kV, compatible with global 50/60 Hz standards
- Special materials withstand extreme conditions (UV radiation, heavy rain, extreme temperatures)
- Estimated service life ≥20 years, confirmed by accelerated aging tests
Mechanical Innovation with Dual Solution
- Spring mechanism (improved traditional design)
- Independent three-phase permanent magnet mechanism (industry-leading technology)
Applications
Outdoor automatic circuit recloser
Technical Parameters
Material Properties
| Material water absorption rate | Tensile strength | Bending strength | Breakdown strength | L (mm) | W (mm) | D (mm) |
|---|---|---|---|---|---|---|
| ≤0.07% | ≥55 MPa | ≥100 MPa | ≥15 kV/mm | 395 | 230 | 616.5 |
Electrical Specifications
Rated voltage: 11kV
Rated frequency: 50/60Hz
Partial discharge: ≤5PC@1.2Ur
Color: RAL7035 Gray
Power frequency withstand voltage: 65kV/1min
Lightning impulse voltage: 125/150kV
