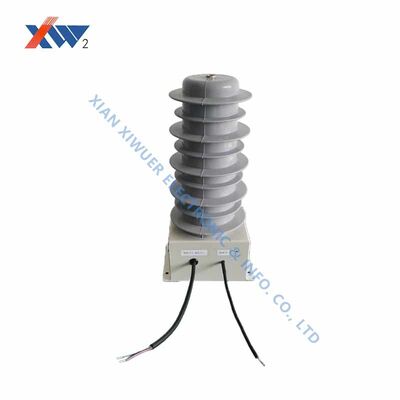

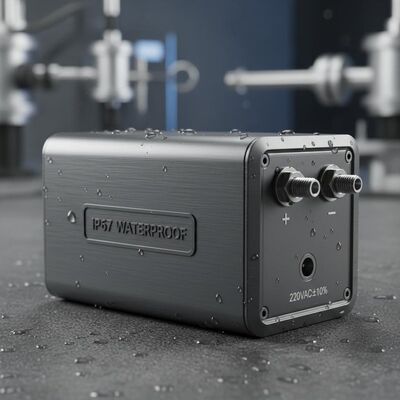

High Voltage Capacitor Power Supply with 220VAC±10% Output Voltage, IP67 Waterproof Level, and Insulating Resin Potting

  • High Voltage Capacitor Power Supply with 220VAC±10% Output Voltage, IP67 Waterproof Level, and Insulating Resin Potting
Place of Origin Xian-China
Brand Name XIWUER
Certification ISO
Model Number LEDZW-12
Minimum Order Quantity 1 unit
Price Negotiable
Packaging Details Carton
Delivery Time 10-15 days
Payment Terms L/C,T/T
Supply Ability 1,000,000 units a year
Product Details
Highlight

220VAC±10% Output Voltage High Voltage Capacitor Power Supply

,

IP67 Waterproof Level HV Ceramic Capacitor

,

Insulating Resin Potting Power Supply Device
Leave a Message
Product Description
High Voltage Capacitor Power Supply - LEDZW-12
Product Overview

The power supply is a power supply device that directly connects the high voltage end to the device and obtains electrical energy from the output end. It is mainly composed of a capacitor unit and an electromagnetic unit, wherein the electromagnetic unit includes an intermediate transformer and a harmonic elimination circuit.

Electrical Performance Index
Serial Number Categories Unit Index
1 Output Voltage V 220VAC±10%
2 Output Power W 10
3 Working Temperature ºC -40~+70
4 Capacitor Dimension mm Φ129*330
5 Main Size mm 186*135*75
6 Heat Dissipation Structure - Insulating Resin Potting
7 Package Structure - Plastic & Metal Shell
8 Waterproof Level - IP67
Technical Principle

The high-voltage capacitor energy-harvesting device consists of a capacitor module and a conversion module. It obtains electrical energy through capacitor voltage division, and the conversion module steps down and stabilizes the voltage for output. For AC output, the conversion module includes a transformer, voltage stabilization, and protection units; for DC output, it also includes rectification and filtering units, and different rectification circuits can be selected according to requirements.
