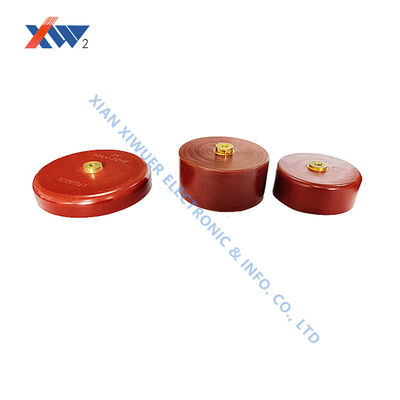

High Frequency 12KV 190pF Ceramic Capacitor High Voltage Doorknob Capacitor

Name: High Frequency 12KV 190pF Ceramic Capacitor High Voltage Doorknob Capacitor
Brand: XIAN XIWUER ELECTRONIC AND INFO. CO., LTD
SKU: CT8-2-R-12kV-190pF
Price: negotiable USD
Availability: InStock

Brand Name:	XIWUER
Model Number:	CT8-2-R-12kV-190pF
MOQ:	1 piece
Price:	Negotiable
Payment Terms:	L/C,T/T
Supply Ability:	8,000,000 a year

Detail Information

Product Description

Detail Information

Place of Origin:

XIAN, CHINA

Certification:

ISO9001,ISO14001,ISO45001

Operating Temperature:

-30°C ~ 85°C

Nominal Working Voltage:

12KV

Capacitance Tolerance:

190pF

Withstanding Voltage:

5 0 H Z 4 2 KV ·1 M In （ In The Oil ）

Tolerance:

±20pF

Dielectric Losses:

1 V, 1 KHz, 2 0 ～ 2 5 ℃ ＜ 0 .4 ％

Packaging Details:

Carton

Supply Ability:

8,000,000 a year

Highlight:

12KV ceramic capacitor high voltage

190pF doorknob capacitor

high frequency high voltage capacitor

Product Description

High Frequency High Power Ceramic Capacitor 12KV-190pF High Voltage Doorknob Capacitors

Capacitors are ceramic, fixed capacitors, and vacuum capacitors. The rating of 2200 pF capacitance at 7 KV peak voltage. These are brand-new units in factory boxes, many of which can be used for mass production.

Features

High insulation resistance
Epoxy coating
Thread terminal installation
Ceramic single-layer capacitor
Material classification: Used to define compliance

Application

This capacitor powers electronics like a TV, computer, and home appliances using a wave-filtering return circuit.

Technical Parameters

Part No	Dielectric	Capacity	Rated voltage	Rated power	Dielectric loss	D/H A(mm)	D/H B(mm)	Screw (mm)
202RF	280	2000PF	50KV	280KVA	8%	82*22	87*22	M10
252RF	280	2500PF	40KV	280KVA	8%	95*22	112*22	M10
302RF	280	3000PF	30KV	280KVA	8%	104*22	115*22	M10
402RF	320	4000PF	30KV	280KVA	0.5%	104*22	115*22	M10
502RF	320	5000PF	30KV	280KVA	0.5%	104*22	115*22	M10
602RF	320	6000PF	30KV	260KVA	0.5%	115*22	125*22	M10
802RF	850	8000PF	20KV	260KVA	1%	95*22	115*22	M10
103RF	850	10000PF	15KV	260KVA	1%	104*22	115*22	M10
203RF	850	20000PF	10KV	260KVA	1%	120*22	130*22	M10

Company Overview

Xian Xiwuer Electronic and Info. Co., Ltd is a wholly state-owned company with a registered capital of CNY 101.465 million (exchanged to USD15.85 million), owning total assets of CNY315 million (traded to USD 49.22 million). It was established in 1976. Currently, it has about 460 employees, with an annual sales income of CN280 million (exchanged to USD43.75 million). The company has four production and business bases covering an area of 43052 square meters, and a construction area of more than 50000 square meters.

The company has 8 persons with master's degrees, more than 80 engineers with senior technical titles 12 technicians who have been awarded Experts with Outstanding Contributions by the Xian municipal government, and 1 expert who has been enjoying a special allowance from the State Council.

Main Products

Smart Embedded Epoxy Pole
Integrated Instrument Transformer
Capacitive Voltage Divider
Rogowski Coil
High Voltage Capacitor Rod
High Voltage Film Capacitor
High Voltage Resistor
Primary and Secondary Integrated Intelligent assembly and components with the function of voltage measurement, current measurement, protection, temperature monitoring, and power supply
Medium-High Voltage components/parts/ assembly
Surge Protective Device for Power Supply System
Chips for lightening devices
Zinc Oxide Varistor; Thermistor

Major Customers: ABB, Schneider, GE, ZTE, XD Electric, XJ Electric, PingGao Electric and etc.

The company has the provincial Technical R&D Center. The company has developing and manufacturing experiences of the key products HV Ceramic Capacitor, SPD, Varistor, Thermistor and for nearly 20 years. There have been 32 patented technology, 4 invention patents, and 4 national key new products. The company is in the leading position in the same industry.

The company has grown very fast with a unique management system which is the fundamental guarantee to the continuous development of the enterprise under the state-owned system. In Northwest China, the company is the first to implement ISO 9001 standards and the first to promote the use of ERP management systems, having achieved ISO9001, ISO14001, and ISO45001 approval, thus standardizing and improving the management level of the company.

Through continuous technological innovation, product R&D, and quality improvement the main technical performance and reliability of the products are at the internationally advanced level as the same level with Panasonic and Siemens. The products have got UL, VDE, TUV, CAS, CE, CQC, RoHS, and REACH Certification.

The company has advanced production equipment among which the key production equipment and modern assembly lines are imported from Japan, the U.S.A, Germany, Korea, and Belgium including 26m large sintering tunnel furnaces8 automatic assembly lines, the largest energy impulse current generator and a series of special test equipment and environmental test equipment. In the same industry in China, the company has the largest production capacity, the highest degree of automation with the most complete testing methods.

The company has two routine test laboratories with the most advanced lightning testing equipment and environmental testing equipment which comply with national standards for laboratory construction. They are the significant laboratories supported by Shaanxi Province with professional testing technicians undertaking part of the supervision and inspection of electronic products in Shaanxi Province at the same time.

We believe we are able to supply satisfied goods and services to customers at home and abroad with the most reasonable price and the shortest delivery time. on the bases of our excellent quality assurance capacity, technical development capacity, and rich manufacturing experiences.
