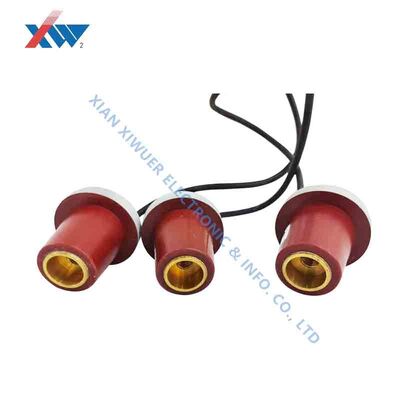

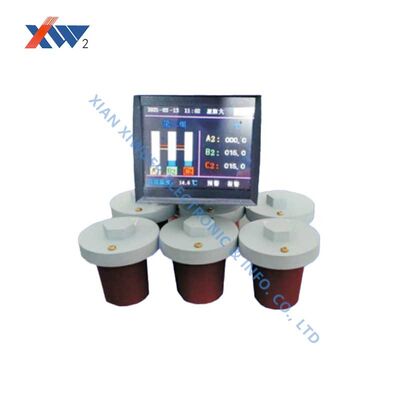

MV Insulating End Caps with High Dielectric Strength UV Resistant and Moisture Proof for Switchgear & Cable Compartments
Product Details
| Voltage Withstanding | 70kV ,50Hz ·1min | Dielectric Losse | 1V，1KHz (20-25)℃ ＜ 0.0040 |
|---|---|---|---|
| Function | Take Electricity, Accurate Measurement | Accuracy | 0.5P |
| Rated Frequency | 50/60Hz | Withstanding Voltage | 50Hz 42kV ·1min (HV-Earthing) |
Product Description
MV Insulating End Caps / Sealing Plugs for Switchgear & Cable Compartments
Product Description
Our MV insulating end caps (insulation plugs) are essential safety components designed to seal unused cable and bushing ports in medium-voltage switchgear, ring main units (RMUs), and transformer enclosures. These high-performance caps provide reliable electrical insulation, preventing flashovers, contamination, and moisture ingress, while protecting against accidental contact with live parts.
Made from durable, high-grade insulating materials, our end caps offer excellent dielectric strength, UV resistance, and long-term stability in both indoor and outdoor environments.
Key Features
- High dielectric strength, meeting MV equipment safety standards
- Seals unused ports to prevent dust, moisture, and contamination
- Provides protection against accidental contact with live components
- Resistant to aging, UV radiation, and environmental stress
- Available in standard sizes for common switchgear port dimensions
- Custom designs available for non-standard applications
- Easy to install and remove during maintenance
Applications
- Sealing unused cable ports in MV switchgear and RMUs
- Insulating and protecting bushing ends and terminals
- Cable compartment sealing in ring main units
- End protection for instrument transformers and sensors
- Indoor and outdoor medium-voltage distribution equipment
Technical Specifications
| Parameter | Details |
|---|---|
| Rated Voltage | Up to 40.5kV (compatible with most MV systems) |
| Insulation Material | High-performance thermoset/thermoplastic compound |
| Dielectric Strength | Compliant with IEC/GB standards |
| Operating Temperature | -40°C to +125°C (typical) |
| Environmental Resistance | UV, moisture, and chemical resistant |
| Customization | Size, shape, and material options available |
