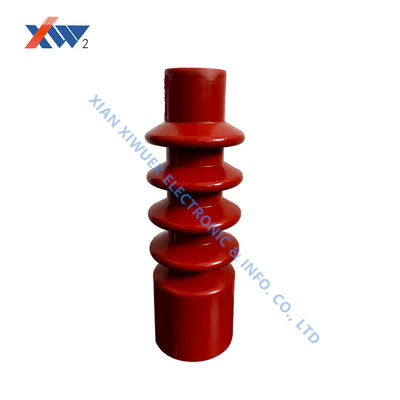

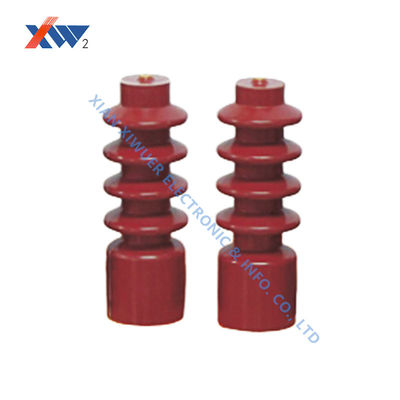

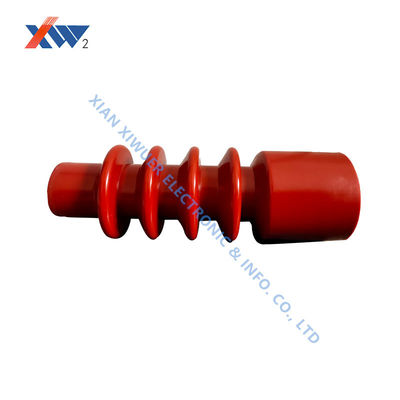

12KV 3000PF Outdoor & Indoor Capacitive Voltage Divider HV Capacitor for AC High Voltage Measurement
Product Details
| Rated Voltage | 12KV | Capacitance | 3000PF |
|---|---|---|---|
| Type | Outdoor & Indoor | Application | Measure AC High Voltage |
| Power Frequency Voltage Withstanding | 45KV | Partial Discharge | 14.4KV≤10pC |
| Highlight | Outdoor hv ceramic capacitor,Indoor hv ceramic capacitor,3000PF Divider Capacitor |
||
Product Description
Outdoor / Indoor Capacitive Voltage Divider
12KV 3000PF Outdoor & Indoor Capacitive Voltage Divider
High voltage capacitor for voltage divider applications with leads, available in two configurations.
Two Types of Capacitive Voltage Divider
Indoor Type
- Capacitance: 3000PF
- External diameter: 80mm
- Height: 75mm
Outdoor Type
- Built-in fuse
- Capacitance: 3000PF
- External diameter: 80mm
Features
- Built-in fuse and capacitor combination (outdoor type)
- High safety: Ineffective capacitor disconnects fuse and insulates high voltage bus and instrument
- Prevents damage to downstream equipment
- UV-resistant outdoor epoxy resin material
- Fuse withstands severe conditions after 5 thermocycling tests (-30℃~85℃)
Main Technical Parameters of High Voltage Ceramic Capacitor
| Parameter | Specification |
|---|---|
| System voltage | 12kV |
| Capacitance | 2000~10000pF ±20% |
| Dissipation | ≤0.0040 |
| Insulation resistance | >105MΩ |
