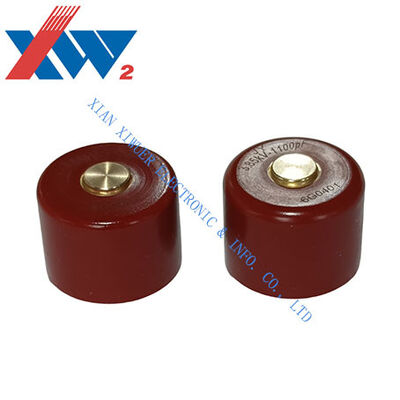

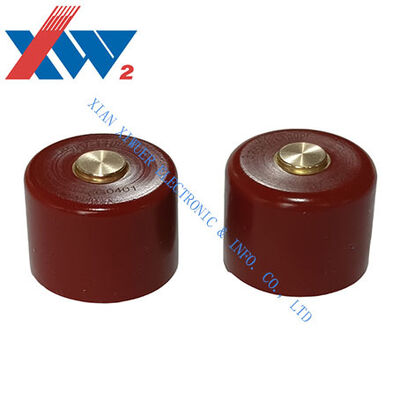

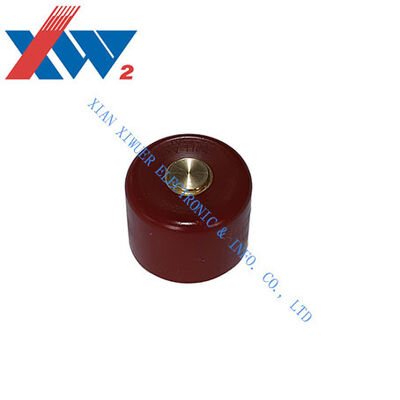

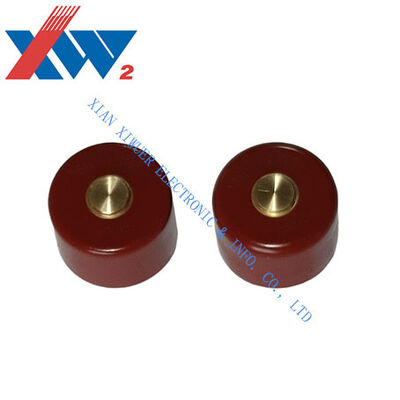

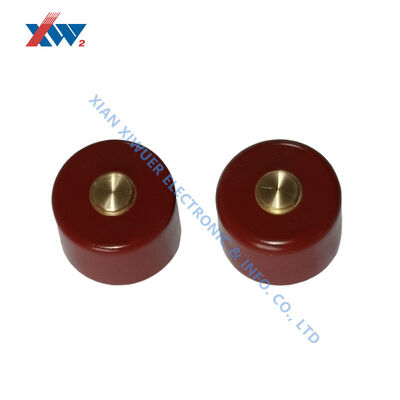

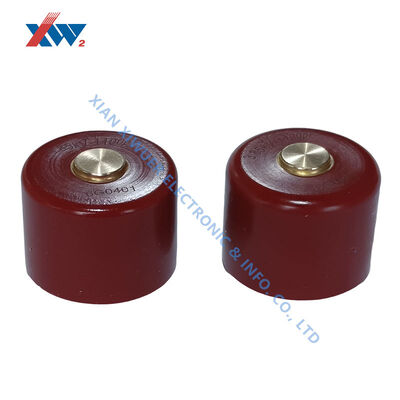

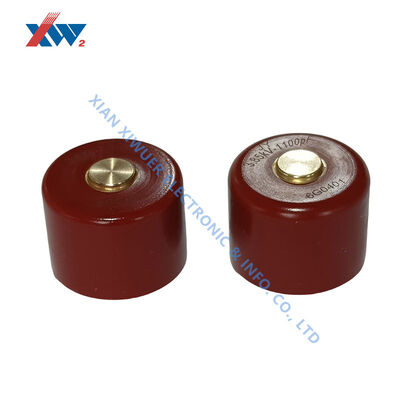

3.85kV 1100pF High Voltage Ceramic Capacitor For Industrial Electronic Applications
Product Details
| Capacitor Type | High Voltage Ceramic Capacitor | Rated Voltage | 3850V DC |
|---|---|---|---|
| Capacitance Value | 1100pF | Dielectric Material | Ceramic Dielectric |
| Capacitance Tolerance | ±10% | Insulation Resistance | ≥10GΩ |
| Operating Temperature | -25℃ ~ +85℃ | Mounting Type | Through Hole / Radial Lead |
Product Description
3.85kV 1100pF High Voltage Ceramic Capacitor for Industrial Electronic Applications
Product Description
The 3.85kV 1100pF High Voltage Ceramic Capacitor is designed for high-voltage electronic circuits requiring stable capacitance, high insulation performance, and reliable long-term operation.
Made with high-quality ceramic dielectric materials, this capacitor provides stable electrical characteristics under high voltage and high frequency conditions. With low dielectric loss and good voltage endurance, it is suitable for applications where electrical stability and durability are important.
This high voltage capacitor is commonly used in power electronic equipment, high voltage power supplies, inverter systems, industrial control equipment, and protection circuits.
Key Features
High Voltage Capability
Rated voltage up to 3850V DC, suitable for high-voltage circuits requiring strong insulation performance and reliable voltage withstand capability.
Stable Capacitance Performance
With a capacitance value of 1100pF, this capacitor provides stable electrical performance and helps maintain consistent circuit operation.
Low Dielectric Loss
The ceramic dielectric structure provides low loss characteristics, making it suitable for high-frequency and high-voltage applications.
High Insulation Resistance
Designed for high-voltage operating environments with excellent insulation performance and long-term electrical stability.
Compact Design
Compact structure allows easy installation and integration into different electronic equipment.
Technical Parameters
| Item | Specification |
|---|---|
| Product Type | High Voltage Ceramic Capacitor |
| Capacitance | 1100pF |
| Rated Voltage | 3.85kV DC (3850V) |
| Dielectric Material | Ceramic Dielectric |
| Capacitance Tolerance | ±10% |
| Insulation Resistance | ≥10GΩ (Typical) |
| Operating Temperature | -25℃ to +85℃ |
| Mounting Type | Through Hole / Radial Lead |
Applications
The 3.85kV 1100pF High Voltage Ceramic Capacitor is suitable for:
-
High voltage power supplies
-
Power electronic equipment
-
Inverter systems
-
Frequency conversion equipment
-
Industrial control systems
-
Pulse circuits
-
Resonant circuits
-
Protection circuits
-
Communication equipment
Product Advantages
-
Stable capacitance under high voltage conditions
-
High insulation resistance
-
Low dielectric loss
-
Good frequency characteristics
-
Compact structure
-
Long service life
-
Custom specifications available
