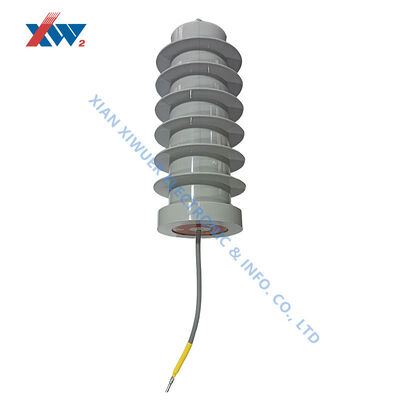

High Voltage Capacitive Voltage Divider For Power System Measurement And Monitoring
Product Details
| Product Type | Capacitive Voltage Divider | Application | High Voltage Measurement |
|---|---|---|---|
| Voltage Level | Customized | Capacitance | Customized |
| Insulation Material | Ceramic Dielectric | Voltage Ratio | Customized |
| Operating Temperature | -40℃ ~ +85℃ | Installation Method | Customized |
| Highlight | High Voltage Capacitive Voltage Divider,Capacitive Voltage Divider for Power Systems,Voltage Divider for System Monitoring |
||
Product Description
Product Description
The High Voltage Capacitive Voltage Divider is a high-voltage measurement component designed for accurate voltage sensing, monitoring, and protection applications in power systems.
Based on capacitive voltage division technology, the device converts high voltage signals into measurable low-voltage signals while maintaining reliable insulation performance and stable electrical characteristics. It is widely used in high-voltage power systems where accurate voltage measurement, compact design, and long-term operating reliability are required.
The capacitive voltage divider adopts high-quality insulation materials and optimized structural design to provide excellent voltage withstand capability, low dielectric loss, and stable capacitance performance under high-voltage conditions.
It is suitable for applications including smart grid systems, switchgear, GIS equipment, high-voltage monitoring systems, power quality analysis, and voltage protection equipment.
Key Features
High Voltage Measurement Capability
Designed for high-voltage AC and DC measurement applications, providing reliable voltage signal conversion and monitoring performance.
Stable Capacitive Division Ratio
Maintains consistent capacitance characteristics to ensure accurate voltage measurement and signal transmission.
Excellent Insulation Performance
High-quality insulation structure provides strong voltage withstand capability and reliable operation in high-voltage environments.
Low Dielectric Loss
Optimized capacitor design reduces energy loss and improves measurement stability.
Compact and Reliable Structure
Compact construction allows easy integration into power equipment and high-voltage monitoring systems.
Technical Parameters
| Item | Specification |
|---|---|
| Product Type | Capacitive Voltage Divider |
| Application | High Voltage Measurement and Monitoring |
| Voltage Range | Customized |
| Capacitance Value | Customized |
| Voltage Ratio | Customized |
| Dielectric Material | Ceramic / High Performance Insulation Material |
| Insulation Resistance | ≥10GΩ |
| Operating Temperature | -40℃ ~ +85℃ |
| Installation Type | Custom Mounting |
Applications
The High Voltage Capacitive Voltage Divider is commonly used in:
- Smart grid monitoring systems
- High voltage switchgear
- GIS (Gas Insulated Switchgear)
- Power distribution equipment
- High voltage measurement systems
- Voltage protection systems
- Power quality monitoring equipment
- Industrial electrical systems
Product Advantages
- Accurate high voltage signal measurement
- Stable capacitance performance
- High insulation reliability
- Low dielectric loss
- Compact structure design
- Suitable for harsh high-voltage environments
- Long operational lifetime
- Custom solutions available
