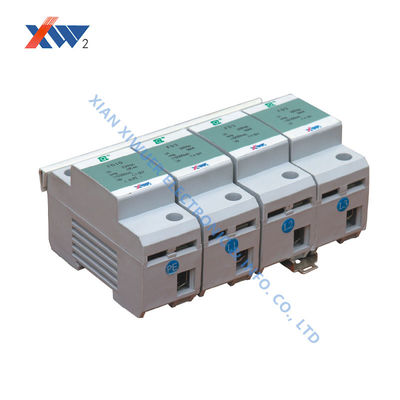

FD3 320/50 Power Surge Protective Device 320V 50KA Small Size

  • FD3 320/50 Power Surge Protective Device 320V 50KA Small Size
  • FD3 320/50 Power Surge Protective Device 320V 50KA Small Size
Place of Origin XIAN,CHINA
Brand Name Qing Zhu
Certification UL,TUV,CCC,ROHS
Model Number FD3-320/50
Minimum Order Quantity 1 unit
Price USD, Negotiable, unit
Packaging Details Carton
Delivery Time 5-7 days
Payment Terms L/C, T/T
Supply Ability 4,000,000 units/year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Structure Zinc Oxide Arrester Application AC/DC System
Installation Parallel Arrester Size Small
Trademark XIWUER Specification 140×95×67
High Light

FD3 Surge Protective Device

,

320V Surge Protective Device

,

50KA ac power surge protection
Leave a Message
Product Description

FD3 320/50 320V 50KA Power Surge Protector applied primarily to the main distribution system surge protection unit

Operating Principle



       Edge discharge technique is used for this device. The electrode is in the shape of angle.Two electrodes are placed face to face, and kept a certain distance between them by an insulating block made from special materials. There is an arc quenching baffle plate in the arc quenching chamber located under the electrode, which will be edge discharging at the surface of the insulating block when over-voltage is coming. The arc is forced outwards due to the angle shape structure of the electrodes and then split into many sub-arcs against the baffle plate. These discharge features are favorable for the arc quenching process after the discharge finished, and thus limiting the follow-through current caused by discharging.



Application



      The device is applied primarily to the main distribution system. It can suppress the direct lightning over-voltage or inductance over-voltage with high energy appeared in the lines of low voltage power system, to protect the buildings and various outdoor installed apparatus in the Class 1 lightning arresting area, which are likely to be stroke by lightning.



Technical Parameters



Model No. FD3-320-50
System NominalAC Current U0 220Vac
Max. Continuous Operating VoltageUc 320Vac
Nominal Discharge Current In(8/20 μs) In 50kA
Lightning Strike Current Iimp(10/350 μ s) 50kA
Protection Level Up (1.2/50 μ s) 4 kv
Characteristic Energy 625KJ/Ω
Response Time <100ns
Dimension 140×95×67(Reference Value)
Installation Pattern Matched with 35mm width standard rails
FD3 320/50 Power Surge Protective Device 320V 50KA Small Size 0
