SHP3-220 3-In-1 Surge Protective Device Multifunctional 10KA

  • SHP3-220 3-In-1 Surge Protective Device Multifunctional 10KA
  • SHP3-220 3-In-1 Surge Protective Device Multifunctional 10KA
  • SHP3-220 3-In-1 Surge Protective Device Multifunctional 10KA
  • SHP3-220 3-In-1 Surge Protective Device Multifunctional 10KA
Place of Origin XIAN,CHINA
Brand Name Qing Zhu
Certification UL,TUV,CCC,ROHS
Model Number SHP3-220
Minimum Order Quantity 1 unit
Price USD, Negotiable, unit
Packaging Details Carton
Delivery Time 5-7 days
Payment Terms L/C, T/T
Supply Ability 4,000,000 units/year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Insertion Loss 0.5dB Maximum Current 10KA
Application Surge Protection Of Surveillance Cameras With PTZ Control Ports Trademark XIWUER
High Light

SHP3-220 Surge Protective Device

,

3-In-1 Surge Protective Device

,

10KA small surge protector
Leave a Message
Product Description

SHP3-220 3-in-1 Multifunctional Surge Protector multifunctional surge protector suitable for surge protection

SHP3-220 3-in-1 Surge Protector

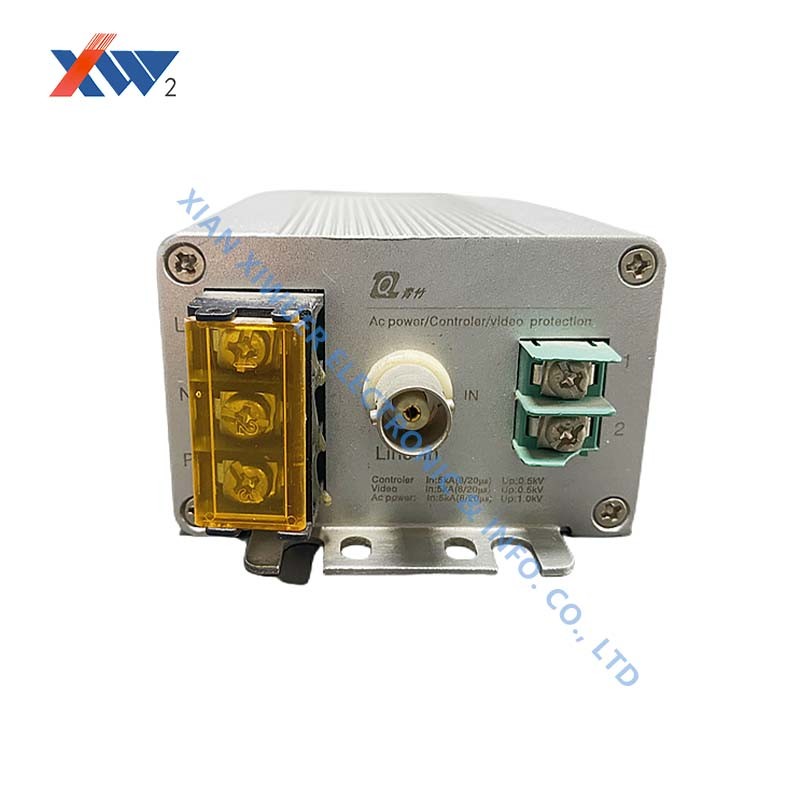

Model SHP3-220 is a multifunctional surge protector suitable for surge protection of surveillance cameras with PTZ control ports.


Features

  • A multi-functional lightning protection product integrating power supply, control and video protection.
  • The line adopts two-level protection method, with large current capacity, low residual voltage, and the maximum current can be 10KA.
  • It has the function of indicating the deterioration of lightning protection components, and the indicator light is green during normal operation. When the indicator light goes out, it reminds the user that the lightning protection component has failed and should be replaced in time.
  • Insertion loss: <0.5dB

Product installation

  1. Installation should be carried out by relevant professionals.
  2. When connecting the line: insert the external power supply, video and control signal lines into the corresponding interface of the (line in) end of the surge protector. The output terminal (Equipment) of the surge protector is connected to the protected device. The installation distance between the surge protector and the protected equipment should not be greater than 0.5 meters.
  3. The connection line of the surge protector should be consistent with the original line and match the protected equipment. The ground connection line should be less than 6mm2. The connection line should be short and straight, and cannot be bent or coiled.
  4.  Grounding requirements shall be implemented with reference to Articles 5.2.5 and 5.2.6 of GB50343-2004 and the Technical Specification for Civil CCTV System Engineering.
  5.  The lines connected to and connected to the surge protector and the grounding lines should be laid separately, and should not be overlapped or entangled in parallel and there should be no looping phenomenon.

Technical Parameters



Power Protection Parameters
Failure Indication When the panel indicator is off, the lightning protection function is invalid
Maximum continuous operating voltage Uc 220V
Nominal discharge current n (8/20 μ s) 5KA
Maximum discharge current Imax (8/20 μ s) 10KA
Protection level Up ( 5KA ) (8/20μ s) 1.1kV
PTZ Control Signal Protection Parameters
Maximum continuous operating voltage Uc 5V
Nominal discharge current In (8/20 μ s ) 5KA
Maximum discharge current max(8/20 μ s) 10KA
Protection level Up (5KA) (8/20μ s) 0.2kV
Transmission characteristics 10MHz
Insertion loss 0.5dB
Video Signal Control Section
Maximum continuous operating voltage Uc 5V
Nominal discharge current In (8/20μ s ) 5KA
Maximum discharge current Imax (8/20μ s) 10KA
Protection level Up(5KA) (8/20μ s) 0.2kV
Transmission characteristics 10MHZ
Insertion loss 0.5dB
External Dimensions (Reference Dimensions) 145 × 71 × 46 (mm)





COMPANY OVERVIEW



      Xian Xiwuer Electronic & Info. Co., Ltd. is located in Beiguan, Xi'an city cover in an area of 4000 ㎡, with employees of 2300, and about 580 technicians, amongthem, there are 135 engineers, 21 senior engineers. The company has total assets of 315 million RMB Yuan, fixed assets of 137 million RMB Yuan, which is a large enterprise mainly engaged in producing electronic components. The company has the largest production scale of Varistor,SPD( Surge Protective Device)and HV Ceramic Capacitor in China, with the following main products :

1. Varistors & SPD

2. HV Ceramic Capacitor
3. Capacitive Voltage Divider

4. Thermistor

       The main production line and inspection equipment & instrument are imported from Japan, America, Belgium and Switzerland etc. The annual production capacity of the two leading products has been reached to 5 million pcs and 150 million pcs respectively, with the market holding rate in China of about 10% and 30% respectively by continually technical innovation. Varistors and SPD produced by the company enjoyed great reputation in the international market, being exported to many countries and areas such as Japan,USA, Hong Kong etc., with the customers like Philips India and GE in USA. are already sold to LG company in Korea with large quantity, and also to Spainand India etc.

       Not only the products quality and technical capacity, but also the completeness of the models are all in the leading place in China. The main products have got CCEE, UL, VDE & TUV approval. The quality system was set up according to the requirement of ISO9000 since 1992, and has passed ISO9002 approval by DNV International Organization in July 1994, then got ISO9001 certification by British organization in 2000, by then we are both the first one who are approved by ISO9000 certification in the North-west area of China and the same occupation. We passed all the successive periodical audit and smoothly get the new certificate registered in Holland in Aug.1997; the quality system is strengthened and completed constantly. And we also got ISO18000 certificate.

       We believe we are able to supply satisfied goods and service to customers home and abroad with the most reasonable price and the shortest delivery time, on basis of our excellent quality assurance capacity, technical development capacity and rich manufacturing experiences.



CERTIFICATE

SHP3-220 3-In-1 Surge Protective Device Multifunctional 10KA 0SHP3-220 3-In-1 Surge Protective Device Multifunctional 10KA 1SHP3-220 3-In-1 Surge Protective Device Multifunctional 10KA 2SHP3-220 3-In-1 Surge Protective Device Multifunctional 10KA 3


Tags:

AC Surge Protective Device

Solar lightning surge protector

Customized small surge protector
