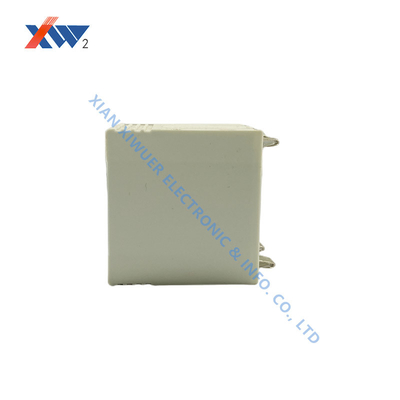

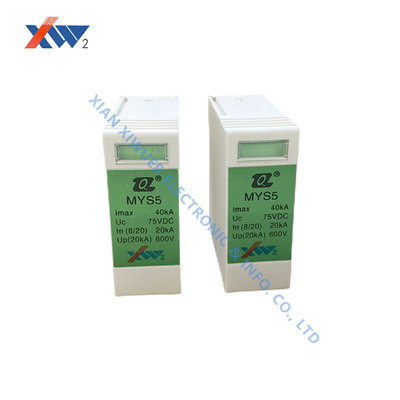

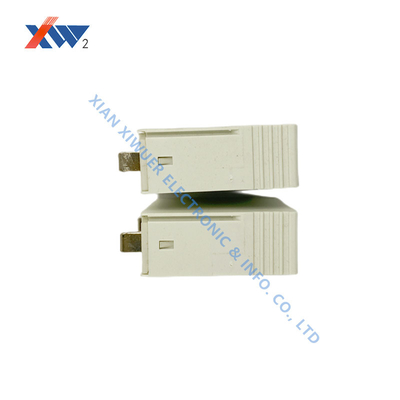

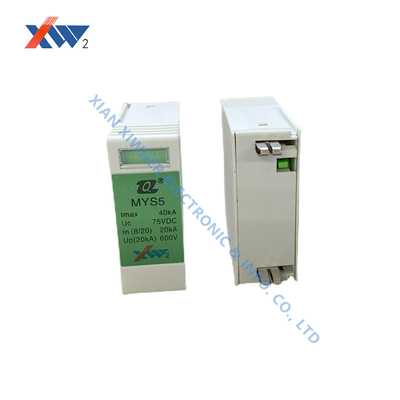

75V 20kA 40kA Single Phase Power Surge Protective Device AC surge protector linghtning protection
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Application | AC/DC System | Maximum Continuous Operating Voltage Uc | 75V |
|---|---|---|---|
| Protection Level Of Outer Shell | IP20 | Selling Units | Single Item |
| Voltage Protection Level Up | 600V | Material Of Shell | PBT |
Product Description
Features
- Modular design, easy to install, replace the module without power failure.
- Internal overcurrent, overheating, temperature-controlled open circuit.
- Fast response time and low residual pressure.
- The window color indicates the working state, green indicates normal, and red indicates failure.
- Max discharge current can endure 40KA(8/20). Installation position On the joint of LPZ1 or LPZ2 and LPZ3 usually installed in household distribution boards, computer equipment,information equipment,electronic equipment and in the socket box in front of control equipment or near the control equipment.
Application
MYS5 385V AC 1P+N-PE surge protective device(SPD) is suitable for 380V AC 50/60HZ TN-S, TN-C-S, TT, IT etc. Power supply system. Normally installed on the joint of LPZ1 or LPZ2 and LPZ3, designed accordingly to IEC61643-1, GB18802.1 standard. It's standard 35mm din rail installation. There is failure release mounted on the module of surge protective device. When SPD fails in breakdown for over-heat or over-current, the failure release will help electric device separate from the power supply system and give the indication signal. Green means normal, red means fault.
Technical Parameters
|
COMPANY OVERVIEW
Xian Xiwuer Electronic and Info. Co., Ltd is a wholly state-owned company with a registered capital of CNY 101.465 million (exchanged to USD15.85 million), owning total assets of CNY315 million (traded to USD 49.22 million). It was established in 1976. Currently, it has about 460 employees, with an annual sales income of CN280 million (exchanged to USD43.75 million). The company has four production and business bases covering an area of 43052 square meters, and a construction area of more than 50000 square meters. The company has 8 persons with master's degrees, more than 80 engineers with senior technical titles 12 technicians who have been awarded Experts with Outstanding Contributions by the Xian municipal government, and 1 expert who has been enjoying a special allowance from the State Council.
The main products include
l Smart Embedded Epoxy Pole；
l Integrated Instrument Transformer
l Capacitive Voltage Divider
l Rogowski Coil
l High Voltage Capacitor Rod；
l High Voltage Film Capacitor；
l High Voltage Resistor；
l Primary and Secondary Integrated Intelligent assembly and components with the function of
l voltage measurement, current measurement, protection, temperature monitoring, and power supply；
l Medium-High Voltage components/parts/ assembly；
l Surge Protective Device for Power Supply System；
l Chips for lightening devices；
l Zinc Oxide Varistor；Thermistor.
Major Customers: ABB, Schneider, GE, ZTE, XD Electric, XJ Electric, PingGao Electric and etc.
The company has the provincial Technical R&D Center. The company has developing and manufacturing experiences of the key products HV Ceramic Capacitor, SPD, Varistor, Thermistor and for nearly 20 years. There have been 32 patented technology, 4 invention patents, and 4 national key new products. The company is in the leading position in the same industry. The company has grown very fast with a unique management system which is the fundamental guarantee to the continuous development of the enterprise under the state-owned system. In Northwest China, the company is the first to implement ISO 9001 standards and the first to promote the use of ERP management systems, having achieved ISO9001, ISO14001, and ISO45001 approval, thus standardizing and improving the management level of the company.
Through continuous technological innovation, product R&D, and quality improvement the main technical performance and reliability of the products are at the internationally advanced level as the same level with Panasonic and Siemens. The products have got UL, VDE, TUV, CAS, CE, CQC, RoHS, and REACH Certification. The company has advanced production equipment among which the key production equipment and modern assembly lines are imported from Japan, the U.S.A, Germany, Korea, and Belgium including 26m large sintering tunnel furnaces8 automatic assembly lines, the largest energy impulse current generator and a series of special test equipment and environmental test equipment. In the same industry in China, the company has the largest production capacity, the highest degree of automation with the most complete testing methods. The company has two routine test laboratories with the most advanced lightning testing equipment and environmental testing equipment which comply with national standards for laboratory construction. They are the significant laboratories supported by Shaanxi Province with professional testing technicians undertaking part of the supervision and inspection of electronic products in Shaanxi Province at the same time.
We believe we are able to supply satisfied goods and services to customers at home and abroad with the most reasonable price and the shortest delivery time. on the bases of our excellent quality assurance capacity, technical development capacity, and rich manufacturing experiences.
