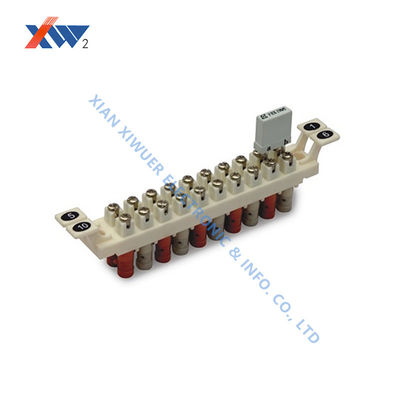

MJ-10 Type Surge Protective Device FXX170/5 Type 170V 5kA Signal Surge Protector

Signal surge protector MJ-10 Type,FXX170/5 Type 170V 5kA 8/20μs applied to the protection for LSA-PLUS chassis telephon

MJ-10 Type,FXX170/5 Type

MJ-10 Series Application Field

• ​This product is mainly applied to the protection for LSA-PLUS chassis telephone lines from damages caused by over voltage. It is an ideal over voltage protector designed for protecting telephone lines.
• Applicable lighting protection zone: LPZ1-LPZ3

Features

• Low Clamping Voltage
• Fast response
• 2 Class protection(fine protection + coarse protection)
• High speed of signal transmission

Technical Parameters

• Rated Operating Voltage: 170V
• Impulse Discharge Current: 5kA
• Protected Circuit: 10 Pairs
• Transmission Speed: 1Mbps
• 2 Class Protection (coarse protection+ fine protection)


FXX170/5 Series Application Field

• ​This product is mainly applied to the protection for the telephone data dividing stand in the divider cabinet from damages caused by over voltage. It has many advantages such as fast response,low clamping voltage,nice apperance and conveniet installation etc.
• Applicable lighting protection zone: LPZ1-LPZ3

​

Technical Parameters

• Rated Operating Voltage: 170V
• Impulse Discharge Current: 5kA
• Protected Circuit: 2 Pairs of wire(a/b; c/d)
• Transmission Speed: 64 kbps
• Connection Approach: Plug-in type(input,output)
