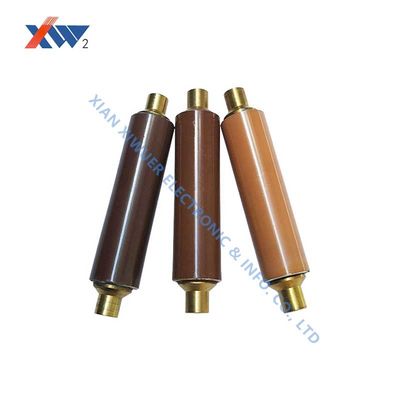

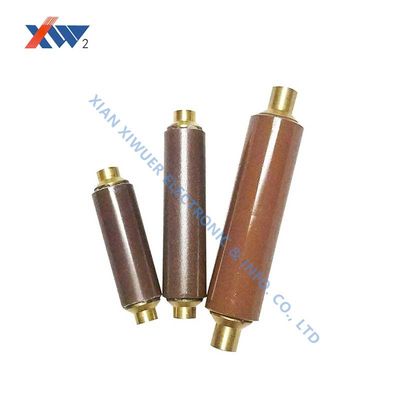

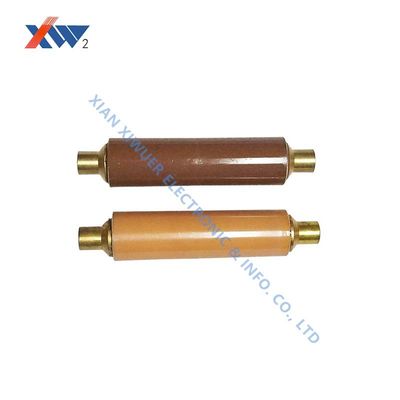

24KV 120PF AC High Voltage Capacitor Live Line Screw Terminal

24KV 120PF AC Live Line High Voltage Ceramic Capacitor - Screw Terminal ceramic capacitor for ZnO lightning arrestor

Features

• Excellent withstand voltage, excellent behavior on pulse and fast discharge conditions.
• Low dissipation factor, low partial discharge.
• Coated with flame-retardant epoxy resin, coated and uncoated devices available.

Applications

• Used to indicate the presence and fault detection of power frequency high voltage distribution switchgear (6.6kV-36kV systems).
• Alternatively, a low-voltage signal can be used to feed power to a sense circuit that monitors power failures and circuit conditions.
• Capacitors are typically included in resin molded parts. Usually, the mold is manufactured by the switch manufacturers themselves to suit their own specific needs, but we can provide some complete molds, or we can suggest suitable sources.

Technical Parameter

Precautions

During operation

• Avoid contact with electrolytes such as perspiration. Do not touch with bare hands.
• Avoid excessive impact such as that caused by falling.
• Do not apply solder to stud terminals.
• Do not re-machine the terminals.
