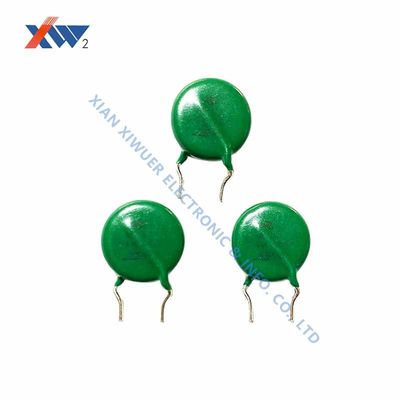

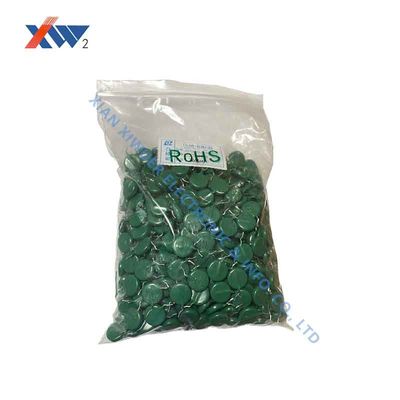

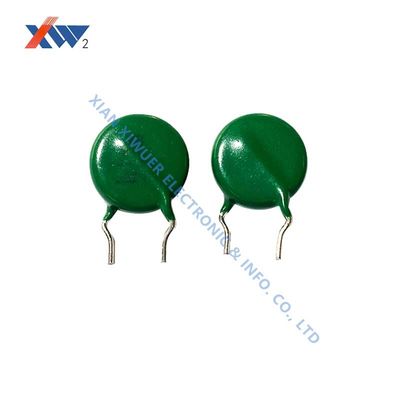

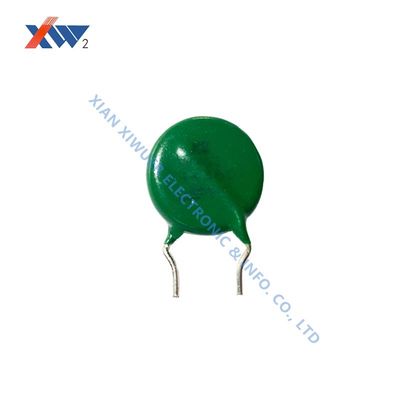

Customizable Lead Spacing 14 mm Diameter General Purpose MOV Metal Oxide Varistor Zinc Oxide Surge Arrester
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Application | General Purpose | Diameter | 14 Mm |
|---|---|---|---|
| Material | Zinc Oxide | Lead Spacing | Customizable |
| Highlight | Customizable MOV Metal Oxide Varistor,14K MOV Metal Oxide Varistor,Customizable Zinc Oxide Varistor |
||
Product Description
MYG3 14K 360 ZT General MOV Metal Oxide Varistor
The MYG3 14K 360 ZT is a customizable Metal Oxide Varistor (MOV) designed as a power source arrester and plug-in lighting resistant component. MOVs are voltage-dependent resistors manufactured from ceramic powders of metal oxides, primarily zinc oxide (approximately 90%) with small amounts of cobalt, manganese, bismuth, and other metal oxides.
The ceramic metal oxide powders are contained between two metal electrodes. The grains form diode junctions between neighbors, creating what is effectively a large series of diodes. At low voltages, a small reverse leakage current flows. When high voltage is applied, the diode junctions experience electron tunneling and avalanche breakdown, enabling the MOV to protect connected equipment.
Internal Structure
Applications
Medical power supplies, electric welding machines, security inspection equipment, detection equipment, power equipment, electrostatic spraying, inverter power supplies, high voltage generators, igniters, negative ion products, and other high voltage power supply applications.
Lead Style Configurations
| Code | Configuration |
|---|---|
| A | Straight Long |
| B | Outside Crimped Short |
| C | Vertical Crimped |
| D | Straight Short |
| E | Outside Crimped Long |
| F | Inside Crimped Short |
Technical Specifications
| Series | Part No. | Varistor Voltage V0.1mA(V) | Max. Allowable Voltage ACr.m.s(V) | Max. Allowable Voltage DC(V) | Max. Clamping Voltage Vc(V) | Rated Wattage (W) | Energy 10/1000 μs (J) | Energy 2ms (J) | Max. Peak Current 1 time (A) | Max. Peak Current 2 time (A) | Capacitance 1kHz (pF) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| MYG2 | 14K11 | 18 (16-20) | 11 | 14 | 36 | 0.1 | 28.0 | 20.0 | 500 | 250 | 25000 |
| MYG2 | 14K14 | 22 (19-25) | 14 | 18 | 43 | 0.1 | 28.0 | 20.0 | 500 | 250 | 2000 |
Physical Dimensions
| Series | Part No. | Dmax (mm) | H (mm) | A (mm) | Wmax (mm) |
|---|---|---|---|---|---|
| MYG2 | 14K11 | 17.5 | 22.0 | 7.5 ±1 | 5.5 |
| MYG2 | 14K14 | 17.5 | 22.0 | 7.5 ±1 | 5.5 |
+=UL 1449 File E321175(S) - Surge Protective Device
□= UL 1449 File E181155(N) - Across-The-Line Application
△=C - UL for CSA C22.2 File E321175(S) Dimension in mm
□= UL 1449 File E181155(N) - Across-The-Line Application
△=C - UL for CSA C22.2 File E321175(S) Dimension in mm
Manufacturer Overview
Xian Xiwuer Electronic and Info. Co., Ltd. is a state-owned enterprise established in 1976 with registered capital of CNY 101.465 million (USD 15.85 million). The company operates four production bases covering 43,052 square meters with over 50,000 square meters of construction area.
Core Product Portfolio
- Smart Embedded Epoxy Pole
- Integrated Instrument Transformer
- Capacitive Voltage Divider
- High Voltage Capacitor Rod
- High Voltage Film Capacitor
- High Voltage Resistor
- Primary and Secondary Integrated Intelligent Assembly
- Medium-High Voltage Components
- Surge Protective Devices
- Lightning Protection Chips
- Zinc Oxide Varistors and Thermistors
The company serves major clients including ABB, Schneider, GE, ZTE, XD Electric, XJ Electric, and PingGao Electric. With 32 patented technologies and ISO 9001, ISO 14001, and ISO 45001 certifications, Xian Xiwuer maintains advanced production equipment and testing laboratories, positioning them as industry leaders in China with international-level technical performance comparable to Panasonic and Siemens.
