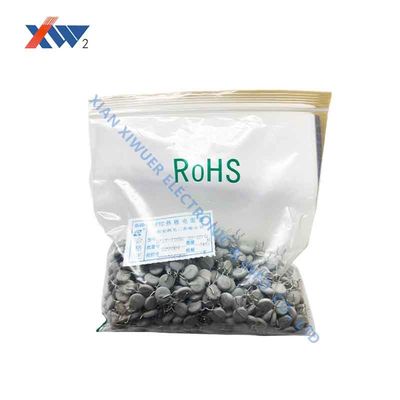

60 Ω PTC NTC Thermistor Electronic Meter 485 MZ21-10BD Ceramic Ptc Thermistor
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Application | General Purpose | Supplier Type | Original Manufacturer, ODM |
|---|---|---|---|
| Trademark | XIWUER | Rated Current (mA) | 25 |
| Switch Temperature | 80 ±7°C | Resistance | Grey/Green |
| Highlight | 60 Ω PTC NTC Thermistor,PTC NTC Thermistor MZ21-10BD,60 Ω ceramic ptc thermistor |
||
Product Description
MZ21-10BD(30-60)Ω Electronic meter 485 communication port protection PTC thermistor
Features
- Small size,strong power and strong capability of surge current protection
- Fast response to surge current
- Longevity of service,High reliability
- Integral series, extensive operating range
Applications
-
Conversion power supply, switch power
-
Filament protection of all kinds of RT, bulb and other lighting lamps
| Model | Max Voltage (V) | Rated current (mA) | Switch current(mA) | Nominal Resistance Range at 25°C Rn (Ω) | Switch Temperature (°C) | Dimensions (mm) | |
| Dmax | T max | ||||||
| MZ21-05BE(30-60)Ω | 245 | 15 | 100 | 30-60 | 75 ± 7 | 6.5 | 5.5 |
| MZ21-05BD(30-60)Ω | 245 | 25 | 150 | 30-60 | 80±7 | 6.5 | 5.5 |
| MZ21-05BC(30-60)Ω | 245 | 25 | 150 | 30-60 | 90 ± 7 | 6.5 | 5.5 |
| MZ21-05BB(30-60)Ω | 245 | 25 | 180 | 30-60 | 100± 7 | 6.5 | 5.5 |
| MZ21-05BA(30-60)Ω | 245 | 25 | 180 | 30-60 | 110±7 | 6.5 | 5.5 |
| MZ21-05AR(30-60)Ω | 245 | 25 | 200 | 30-60 | 120±7 | 6.5 | 5.5 |
| MZ21-10BE(30-60)Ω | 450 | 15 | 150 | 30-60 | 75±7 | 10 | 5.5 |
| MZ21-10BD(30-60)Ω | 450 | 25 | 150 | 30-60 | 80 ±7 | 10 | 5.5 |
| MZ21-10BC(30-60)Ω | 450 | 25 | 180 | 30-60 | 90 ± 7 | 10 | 5.5 |
| MZ21-10BB(30-60)Ω | 450 | 25 | 200 | 30-60 | 100±7 | 10 | 5.5 |
| MZ21-10BA(30-60)Ω | 450 | 25 | 220 | 30-60 | 110±7 | 10 | 5.5 |
| MZ21-10AR(30-60)Ω | 450 | 25 | 250 | 30-60 | 120 ±7 | 10 | 5.5 |
| MZ21-05BD ( 30-60 ) Ω | 245 | 30 | 120 | 30-60 | 80±5 | 6.5 | 5.5 |
| MZ21-05BD500M | 245 | 30 | 115 | 50 ±20 | 80±5 | 6.5 | 5.5 |
| MZ21-05BD560M | 245 | 30 | 115 | 56 ±20 | 80±5 | 6.5 | 5.5 |
| MZ21-10BD (30-60) Ω | 450 | 55 | 150 | 30-60 | 80±5 | 10 | 5.5 |
| MZ21-10BD500M | 450 | 55 | 145 | 50 ±20 | 80±5 | 10 | 5.5 |
| MZ21-10BD560M | 450 | 55 | 140 | 56 ±20 | 80±5 | 10 | 5.5 |
