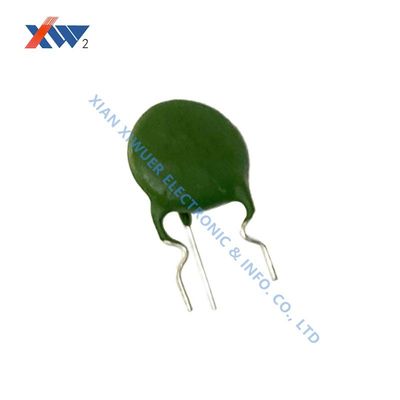

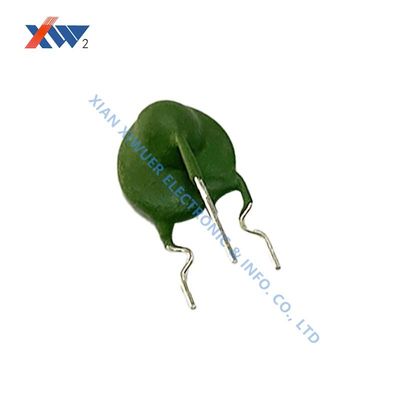

200~400 Ω Smart Ntc And Ptc Thermistor For Overvoltage Protection DZD-10391 D5AR
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Application | Electronic, Electronic Products | Supplier Type | Original Manufacturer, ODM |
|---|---|---|---|
| Trademark | XIWUER | Type | Smart Thermistor |
| Temperature Range | -55 ℃ To 125 ℃ | Nominal Resistance Range | (200~400)±2% |
| Highlight | 400 Ω Ntc And Ptc Thermistor,200 Ω Ntc And Ptc Thermistor,DZD-10391 NTC PTC Thermistor |
||
Product Description
DZD-10391/D5AR 200~400 Ω Smart Thermistor For overvoltage and overcurrent protection
NTC power thermistor is a device for suppressing inrush current to an electric circuit. while its resistance remains negligible low during continuous operation. Power NTC thermistor limits surge current by functioning as a power resistor which drops from a high cold resistance to a low hot resistance when heated by the current flowing through it. Thanks to their low resistance in the operating state, Power thermistor have a considerably lower power dissipation than the fixed resistors frequently used for this application.
Features
-
Strong capability of surge current protection
-
Big material constant (B value), small remain resistance
- Resin coated disk thermistor with uninsulated lead-wires
- Wide range of resistance, current and dimension
Applications
- Electronic meter transformer overvoltage and overcurrent protection
The varistor in the intelligent resistor for transformer overvoltage and overcurrent protection plays the role of restraining the voltage, and the thermistor plays the role of limiting the current. The current terminal responds quickly due to the high grid voltage or the wrong input voltage. The varistor keeps the primary voltage of the transformer at about 220V. Due to the thermal coupling effect and the self-heating effect of the thermistor, the resistance value increases significantly. The circuit is disconnected before the varistor burns and bursts to avoid accidents. After the fault, the intelligent resistor reduces the overvoltage to the normal working voltage of the electric meter, and ensures that the electric meter can work and measure normally. After protection, the meter works and measures normally.
| Model | Nominal Resistance Range at 25°C Rn (Ω) | V1 mA (V) | Max Voltage (V) | Switch Temperature (°C) |
Withstand Voltage (V) |
Dimensions(mm) | |
| Dmax | Tmax | ||||||
| DZD-10181/05AR500 | 50+ 20% | 180+10% | 125 | 120±7 | 300 | 12.5 | 8.0 |
| DZD-10181/05AR800 | 80±20% | 180±10% | 125 | 120±7 | 300 | 12.5 | 8.0 |
| DZD-10391/05BD301 | 300±20% | 390±10% | 275 | 80±7 | 450 | 12.5 | 8.0 |
| DZD-10391/05AR150-250 | (150-250) ±2% | 380-430 | 275 | U5±7 | 450 | 12.5 | 8.0 |
| DZD-10391/05AR200-400 | (200-400) ± 2% | 380-430 | 275 | 115±7 | 450 | 12.5 | 8.0 |
| DZD-14900/10AR30-50 | (30-50) ±2% | 100-135 | 64 | 115±7 | 200 | 17.5 | 12.0 |
| DZD-14101/10AR30-50 | (30-50) ± 2% | 100±10% | 64 | 115±7 | 200 | 17.5 | 12.0 |
| DZD-14181/08AR40-80 | (40-80) ±2% | 170-199 | 125 | U5±7 | 300 | 17.5 | 12.0 |
| DZD -14181/10AR30~50 | (30-50) ±2% | 170-199 | 125 | 115±7 | 300 | 17.5 | 12.0 |
| DZD-14391/08AR500 | 50 ± 20% | 390±10% | 275 | 120±7 | 450 | 17.5 | 12.0 |
| DZD-14391/08AR900 | 90± 20% | 390±10% | 275 | 120±7 | 450 | 17.5 | 12.0 |
| DZD-14391/09AR400 | 40± 20% | 390±10% | 275 | 120±7 | 450 | 17.5 | 12.0 |
| DZD-14431/07BD400 | 40± 20% | 430±10% | 275 | 80±7 | 400 | 17.5 | 12.0 |
| DZD-14391/08AR60-120 | (60~120) 土 2% | 380-430 | 275 | 115±7 | 450 | 17.5 | 12.0 |
| DZD-14391/1OAR 40-80 | (40-80) ± 2% | 390±10% | 275 | 115±7 | 450 | 17.5 | 12.0 |
| DZD-14391/10AR30-50 | (30-50) ±2% | 390+10% | 275 | 115±7 | 450 | 17.5 | 12.0 |
| DZDT 4391/10BD100~200 | (100-200) ±2% | 390±10% | 275 | 115±7 | 450 | 17.5 | 12.0 |
Note: The above table is the common specifications of existing customers, and can also be made according to customer requirements.
