300-500 Ω PTC NTC Thermistor for IC Card Holder Protection MZ21 04BE

Place of Origin Xian, China
Brand Name QingZhu
Certification Reach,Rohs
Model Number MZ21-04BE (300-500) Ω
Minimum Order Quantity 1000 pcs
Price Negotiable
Packaging Details Carton
Delivery Time 7 to 10 days
Payment Terms L/C, T/T
Supply Ability 100,000,000 pcs a year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Application Electronic, Electronic Products Supplier Type Original Manufacturer, ODM
Trademark XIWUER Maximum Voltage (V) 270
Nominal Resistance Range At 25 ℃ Rn (Ω) 300~500 Dimensions(mm) ∮ 5.5*W5.2
Highlight

500 Ω PTC NTC Thermistor

,

PTC NTC Thermistor MZ21 04BE

,

300 Ω ntc ptc thermistor

Leave a Message
Product Description

MZ21 04BE (300-500) ΩElectronic meter IC card holder protection thermistor



IC card holder protection application PTC thermistor



Protection principle



       Figure 3-4 Figure 3-5 The IC card holder protection is mainly to prevent the abnormal use of the prepaid electronic watt-hour meter bayonet and to withstand external static electricity, lightning strikes, strong electricity, accidental short circuit and other attacks. At the same time, improve the reading and writing ability of IC card and prolong the service life of IC card and card table.



300-500 Ω  PTC NTC Thermistor for IC Card Holder Protection MZ21 04BE 0

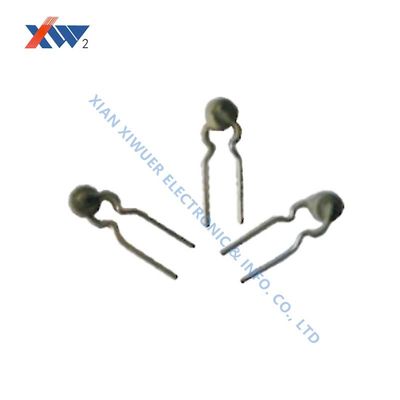

IC card holder protection application PTC thermistor technical parameters



Model Maximum Voltage (V) Rated Current (mA) Switch Current (mA) Nominal resistance range at 25 ℃ Rn (Ω) Switch Temperature(℃) Dimensions(mm)

∮ max

W max
MZ21-05BD (30-60)Ω 245 30 120 30-60 80±5 6.5 5.5
MZ21-05BD500M 245 30 115 50±20% 80±5 6.5 5.5
MZ21-05BD560M 245 30 115 56±20% 80±5 6.5 5.5
MZ21-04BE (300-500) Ω 270 10 25 300-500 70±5 5.5 5.2

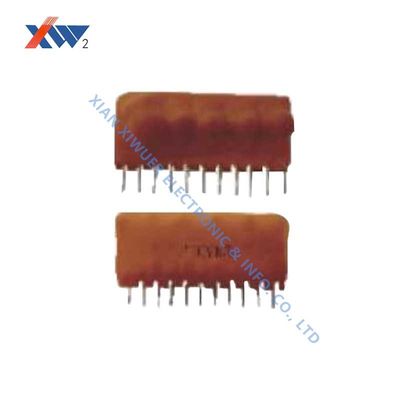

IC card holder protection application PTC module



Notes

  • 1-2,2-3,3-4,4-5,5-6,6-7,7-8,8-9,9-10,10-11 The pitch of each pin is 3.0±0.1mm.
  • Lead description: 2468.10 pin is the input pin, 1357.9 is the corresponding output pin, and 11 pin is the GND terminal.
  • Special specifications can be customized according to customer requirements (according to the size of the IC card bayonet with load capacity, determine the technical parameters of the components)

300-500 Ω  PTC NTC Thermistor for IC Card Holder Protection MZ21 04BE 1

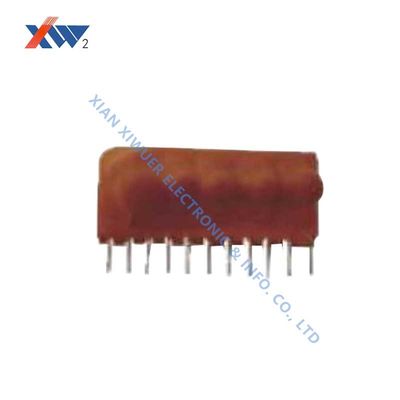

IC card holder protection application PTC module technical parameters



Model Regulation Range (V)

Resistance range (Ω)

Switch Temperature(℃)

Lead Spacing (mm) Wire diameter (mm) Module size (max.) length x width x height (mmxmmxmm)
R 1-2 ( ±5%) R(±5%)

Tc1-2

(±5%)

Tc

(±5%)

PTCMK4-05BD(30-60)/04BE(300-500) 5.6±5% 30-60 300-500 80 70 3.0±0.1 0.6±0.5 33.5 x 13.0x8.5
PTCMK4-05BD(30-60)/04BE(300-500)-A 6.8±15%/5.6V±5% 30-60 300-500 80 70 3.0±0.1 0.6±0.5 33.5x13.0x8.5
PTCMK5-05BD(30-60)/04BE(300-500) 5.6±5% 30-60 300-500 80 70 3.0±0.1 0.6±0.5 33.5x13.0x8.5
PTCMK5-05BD(30-60)/04BE(300-500)-A 6.8±15%/5.6V±5% 30-60 300-500 80 70 3.0±0.1 0.6 ± 0.5 33.5 x 13.0 x 8.5
PTCMK6-05BD(30-60)/04BE(300-500) 5.6±5% 30-60 300-500 80 70 3.0±0.1 0.6 ± 0.5 37.5 x 13.0 x 8.5
PTCMK6-05BD(30-60)/04BE(300-500)-A 6.8±15%/5.6V±5% 30-60 300-500 80 70 3.0±0.1 0.6 ± 0.5 37.5 x 13.0x8.5


Precautions


R: Indicates the resistance of the thermistor other than pins 1-2 (such as the resistance of the thermistor between pins 3-4 5-6 7-8 9-10)
Tc: Indicates the switching temperature of the thermistor except pins 1-2 (such as the thermistor switching temperature between pins 3-4 5-6 7-8 9-10) The above table is the commonly used specifications of existing customers , can also be made according to customer requirements
