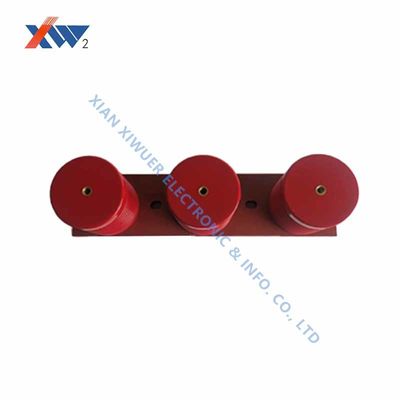

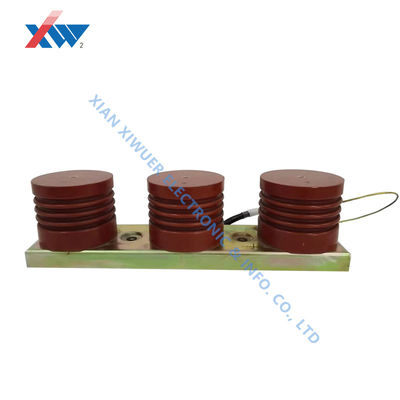

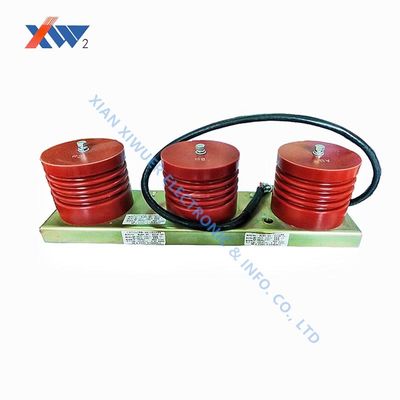

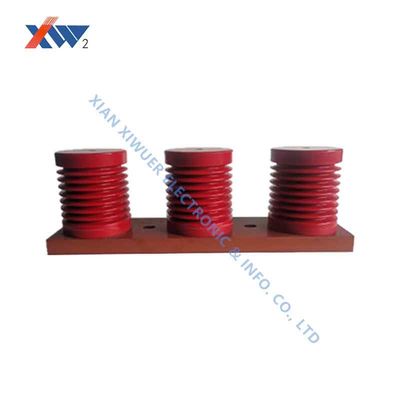

Zero Phase Sequence Capacitive Voltage Transformer Integrated Column JY.EVT- 10/√3KV

JY.EVT- 10/√3KV Zero phase sequence integrated sensor column switch voltage sensor power distribution cabinet capacitor for measuring voltage, current and temperature.

Description

This product is a primary and secondary fusion voltage sensor for distribution network. It is suitable for detecting phase voltage and zero sequence voltage of 10KV line distribution switches. It is insulated with high-voltage epoxy resin, has large creepage and is resistant to contamination.

Technical parameters
