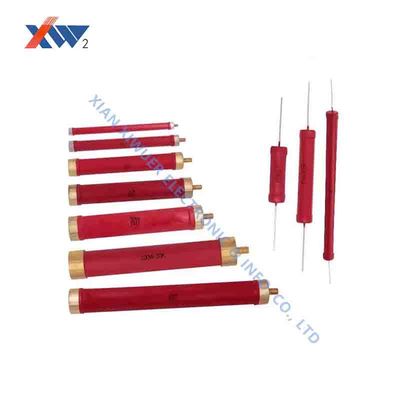

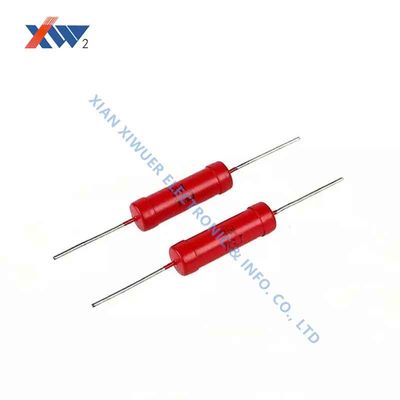

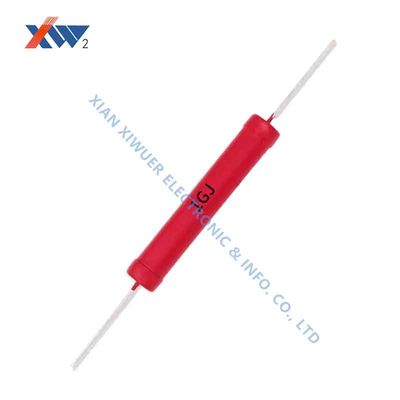

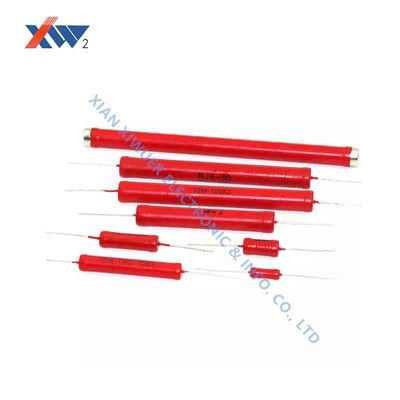

Metal High Voltage Power Resistors Glass Glaze Film 30W Ohm

  • Metal High Voltage Power Resistors Glass Glaze Film 30W Ohm
  • Metal High Voltage Power Resistors Glass Glaze Film 30W Ohm
  • Metal High Voltage Power Resistors Glass Glaze Film 30W Ohm
  • Metal High Voltage Power Resistors Glass Glaze Film 30W Ohm
Place of Origin Xian,China
Brand Name QingZhu
Certification UL,VDE
Model Number RI80
Minimum Order Quantity 10000 pcs
Price USD, negotiable, pcs
Packaging Details 33.5*28.5*28
Delivery Time 7-10 days
Payment Terms T/T
Supply Ability 500 Million pcs a year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type Fixed Resistor Resistance 100kJ-10GJ
Material Glass Glaze Film Application Wireless Electronic Equipment
Highlight

Metal High Voltage Power Resistors

,

Film High Voltage Power Resistors

,

30W Ohm Glass Glaze Resistors
Leave a Message
Product Description

RI80 Metal Glass Glaze Film High Voltage Resistor 30W Ohm Resistor



Features

  • High resistance power, high precision, wide resistance range
  • The appearance of cylindrical design, small size, no inductance terminal lead welding
  • The surface is coated with high-voltage insulating heat-dissipating paint to protect stable use in harsh industrial control environments

Technical Parameter



Model Rated power (W) External structure External dimension (mm) Resistance range Temperature coefficient Operating temperature Allowable deviation (%) Maximum voltage (KV)
D±1 L±2 d E±2
RI80 3 a 9 30 1±0.2 28 1-1000G

≤ 200 PPM



 -55℃~+70℃ F(±1%) G(±2%) J(±5%) K(10%) 10
5 a 9 50 1±0.2 28 1-1000G 15
8 a 11 71 1±0.2 28 1-1000G 20
10 a 9 100 1±0.2 28 1-1000G 25

12



 a,b,c 11 100 1±0.2 28 1-1000G 30
104 M4 10 1-1000G
15 a,b,c 11 146 1±0.2 28 1-1000G 35
147 M4 10 1-1000G
20 b,c 17 116 M5 10 1-1000G ≤ 400 PPM 30
30 b,c 19 116 M5 10 1-1000G 30
50 b,c 21 116 M6 10 1-1000G 30
80 b,c 28 130 M8 10 1-1000G 30
100 b,c 28 160 M8 10 1-1000G 35
150 b,c 28 210 M8 10 1-1000G 60
200 b,c 28 260 M8 10 1-1000G 60
300 b,c 33 310 M8 10 1-1000G 80
500 b,c 52 305 M8 10 1-1000G 80
