Class 1 Class 2 High Voltage Ceramic Disc Capacitors 50 KVDC For HV Power Supplies

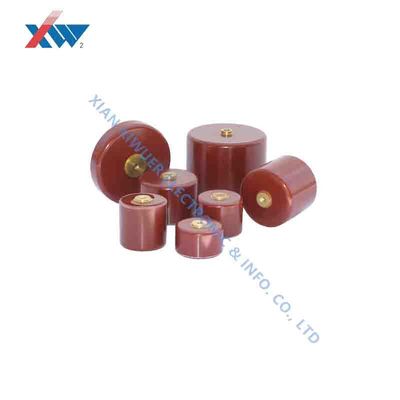

  • Class 1 Class 2 High Voltage Ceramic Disc Capacitors 50 KVDC For HV Power Supplies
  • Class 1 Class 2 High Voltage Ceramic Disc Capacitors 50 KVDC For HV Power Supplies
Place of Origin XIAN, CHINA
Brand Name XIWUER
Certification ISO9001,ISO14001,ISO45001,CCC
Model Number CT8-1-200kV-600pF
Minimum Order Quantity 1 piece
Price Negotiable
Packaging Details Carton
Delivery Time 5-7 days
Payment Terms L/C, T/T
Supply Ability 3,000,000 pcs a year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Working Voltage 50 KVDC Terminal Dimensions M4×4
Capacitance Range 100 PF To 8000pF
Highlight

50 kVDC Ceramic Disc Capacitors

,

Class 2 Ceramic Disc Capacitors

,

HV Power Supplies Ceramic Capacitor
Leave a Message
Product Description

Class 1 Class 2 High Voltage Ceramic Disc Capacitors 50 KVDC For HV Power Supplies



All new, high quality, high voltage ceramic capacitors for voltage multipliers and other high voltage applications. These capacitors can be operated in the open air for up to their full rated voltage.



Features

  • Compact size with low dissipation factor
  • Low voltage coefficient
  • Epoxy-encapsulated internal screw thread design
  • Up to 50kV DC working voltage



Application

  • Lightning arresters, voltage distribution systems
  • HV power supplies
  • Electrostatic coating and spray equipment
  • Lasers
  • Electron Microscopes and synchroscopes



DIMENSIONS



Class 1 Class 2 High Voltage Ceramic Disc Capacitors 50 KVDC For HV Power Supplies 0

Technical Parameter



Typical model's electrical parameter:
Sq Model Number Dielectric Loss Withstand Voltage Insulation Resistance Dimension(mm)
D H L D M
1 20kV-2000pF ≤0.004 1.5Ur?60s ≥1.0 x 106MΩ 45 19 23 12 5
2 20kV-10000pF 65 15 19 12 5
3 20kV-18000pF 80 17 25 12 5
4 30kV-1000pF 45 24 32 12 4
5 30kV-2700pF 60 20 28 12 4
6 30kV-12000pF 74 18 26 12 5
7 40kV-150pF 20 33 41 8 4
8 40kV-500pF 28 33 41 8 4
9 40kV-7500pF 80 24 29 12 6
10 40kV-10000pF 80 22 26 16 5
11 50kV-1000pF 50 30 34 12 4
12 50kV-1000pF 32 27 31 16 5
13 50kV-5600pF 80 31 35 16 5
14 60kV-1500pF 50 31 34 12 5
15 60kV-3000pF 65 32 35 16 5
16 100kV-500pF 50 54 58 12 5
17 100kV-2000pF 51 32 35 16 5
18 100kV - 1500pF(Insulator Type) 68 36 40 16 5
19 150kV-820pF 65 95 100 12 5
20 200kV-600pF 50 90 94 16 5






COMPANY OVERVIEW



   Xian Xiwuer Electronic & Info. Co., Ltd. is located in Beiguan, Xi'an city cover in an area of 4000 ㎡, with employees of 2300, and about 580 technicians, amongthem, there are 135 engineers, 21 senior engineers. The company has total assets of 315 million RMB Yuan, fixed assets of 137 million RMB Yuan, which is a large enterprise mainly engaged in producing electronic components. The company has the largest production scale of Varistor,SPD( Surge Protective Device)and HV Ceramic Capacitor in China, with the following main products :

1. Varistors & SPD

2. HV Ceramic Capacitor
3. Capacitive Voltage Divider

4. Thermistor

      The main production line and inspection equipment & instrument are imported from Japan, America, Belgium and Switzerland etc. The annual production capacity of the two leading products has been reached to 5 million pcs and 150 million pcs respectively, with the market holding rate in China of about 10% and 30% respectively by continually technical innovation. Varistors and SPD produced by the company enjoyed great reputation in the international market, being exported to many countries and areas such as Japan,USA, Hong Kong etc., with the customers like India and GE in USA. are already sold to LG company in Korea with large quantity, and also to Spainand India etc.

     Not only the products quality and technical capacity, but also the completeness of the models are all in the leading place in China. The main products have got CCEE, UL, VDE & TUV approval. The quality system was set up according to the requirement of ISO9000 since 1992, and has passed ISO9002 approval by DNV International Organization in July 1994, then got ISO9001 certification by British organization in 2000, by then we are both the first one who are approved by ISO9000 certification in the North-west area of China and the same occupation. We passed all the successive periodical audit and smoothly get the new certificate registered in Holland in Aug.1997; the quality system is strengthened and completed constantly. And we also got ISO18000 certificate.

    We believe we are able to supply satisfied goods and service to customers home and abroad with the most reasonable price and the shortest delivery time, on basis of our excellent quality assurance capacity, technical development capacity and rich manufacturing experiences.



CERTIFICATE

Class 1 Class 2 High Voltage Ceramic Disc Capacitors 50 KVDC For HV Power Supplies 1Class 1 Class 2 High Voltage Ceramic Disc Capacitors 50 KVDC For HV Power Supplies 2Class 1 Class 2 High Voltage Ceramic Disc Capacitors 50 KVDC For HV Power Supplies 3
