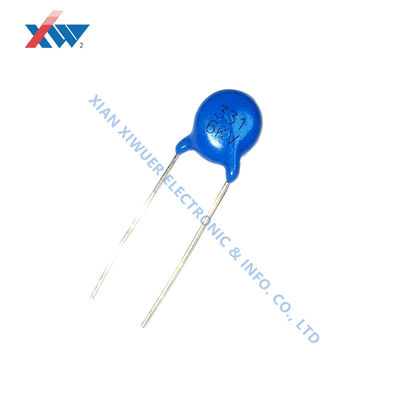

6.3KV 330PF High Voltage Ceramic Capacitor 6KV 331K

  • 6.3KV 330PF High Voltage Ceramic Capacitor 6KV 331K
Place of Origin XIAN, CHINA
Brand Name XIWUER
Certification ISO9001,ISO14001,ISO45001
Model Number CT81-2B4-6KV-331KS4
Minimum Order Quantity 1 piece
Price Negotiable
Packaging Details Carton
Delivery Time 5-7 days
Payment Terms L/C, T/T
Supply Ability 8,000,000 a year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Size Dmax 7.5*T Max5.5mm Storage Temp/Hum -10℃～+40℃ 15%～85%
Rated Voltage 6.3 KV Capacitance Tolerance ±10%
Highlight

330PF High Voltage Ceramic Capacitor

,

High Voltage Ceramic Capacitor 6KV 331K

,

Ceramic High Voltage Capacitor Disc
Leave a Message
Product Description

6.3KV 330pF High voltage ceramic capacitor



Technical Parameter



Capacitance 330pF @ 25℃,1kHz±20%,1V±0.2V
Capacitance tolerance ±10%
Nominal working voltage 6.3KV
Power frequency voltage withstanding 9KV 60 seconds
Dielectric losses ≤200×10 -4 @ 25℃,1kHz±20%,1V±0.2V
Insulation resistance ≥104 MΩ @ 500VDC , 1 minute
Temperature characteristic ±10% @-25℃～+85℃



  • Dimensions



D max

T max

F

d

bmin

Cmax

7.5

5.5

 10.0±0.8 0.60±0.05

20

 3.5

6.3KV 330PF High Voltage Ceramic Capacitor 6KV 331K 0
