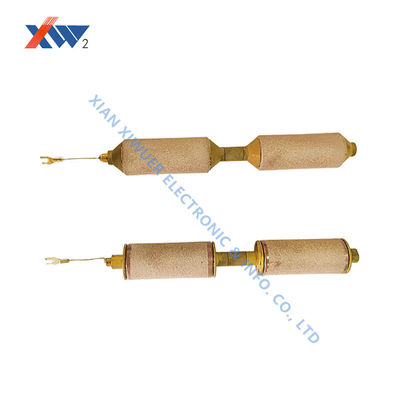

1KHz High Voltage Ceramic Capacitor Signaling Device Presence AC Live Line Capacitors
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Capacitance At | 1V 1KHz (20-25)℃ 8.5pF--11.5pF | Dielectric Losse | 1V，1KHz (20-25)℃ ＜ 0.0040 |
|---|---|---|---|
| Working Voltage | 40.5kV | Power Frequency Voltage Withstanding | 85kVAC 50Hz ·1min(in Oil) |
| Partial Discharge | 35kVAC,50Hz ＜ 10PC(in Oil) | ||
| Highlight | 1KHz High Voltage Ceramic Capacitor,Signaling Device Presence Live Line Capacitors,AC Live Line Capacitors |
||
Product Description
High voltage indication device presence high voltage ceramic high voltage AC live line capacitor
Features
- Low dissipation, high voltage, and low volume
- Eexcellent charge and discharge efficiency
- Electrical performance indicator exceeds the national average by a wide margin
Applications
- Used for indication with wire and the presence of the capacitor is used to indicate voltage circuit, charged, in accordance with the application's wire instructions, used to indicate a conductor, insulation for the capacitor, SF6 circuit breaker.
Dimension
| Voltage Rating |
Nominal Capacitance (pF) |
Nominal Capacitance Range Test Frequency:1kHz±20% Test Voltage:1V±0.2V |
Power Frequency Withstand Voltage (in the insulation oil) |
Partial Discharge | Lightning Impulse (kV) (Maximum Peak Voltage) (in the insulation oil) |
| 3.6kVac | 230 | 210~240 | 32kVAc/5min | 3.96kVac≤10PC | 40 |
| 7.2kVac | 5 | 4~6 | 41kVAc/5min | 7.92kVac≤10PC | 60 |
| 40 | 36 ~44 | ||||
| 150 | 140~170 | ||||
| 12kVac | 5 | 4~6 | 52kVAc/5min | 13.2kVac≤10PC | 75 |
| 20 | 18~22 | ||||
| 40 | 36~44 | ||||
| 50 | 45~55 | ||||
| 125 | 110~140 | ||||
| 200 | 180~210 | ||||
| 300 | 270~330 | ||||
| 24kVac | 5 | 4~6 | 70kVAc/5min | 26.4kVac≤10PC | 125 |
| 15 | 13~17 | 26.4kVac≤10PC | |||
| 35 | 35 ~42 | 26.4kVac≤4PC | |||
| 50 | 45~50 | 26.4kVac≤10PC | |||
| 80 | 70 ~90 | 26.4kVac≤10PC | |||
| 150 | 125~180 | 26.4kVac≤5PC | |||
| 200/400/500 | 180~220 | 26.4kVac≤10PC | |||
| 40.5kVac | 5 | 4~6 | 115kVAc/5min | 44. 5kVac≤10PC | 185 |
| 10 | 8.5~11.5 | 44.5kVac≤5PC | |||
| 45 | 40~50 | 44. 5kVac≤10PC | |||
| 100 | 90~110 | 44. 5kVac≤10PC |
