7D621K SMD varistor for lighting linear power supply LED 7D621K SMD high joule high energy MOVButton
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Rated Wattage | 500（W） | Operating Temperature | -40℃- +125℃ |
|---|---|---|---|
| Tolerance | ±10% | Varistor Voltage @1mA | 620V |
| Package Type | Surface Mount | Application | Lighting Electronics |
Product Description
7D621K SMD varistor for lighting linear power supply LED

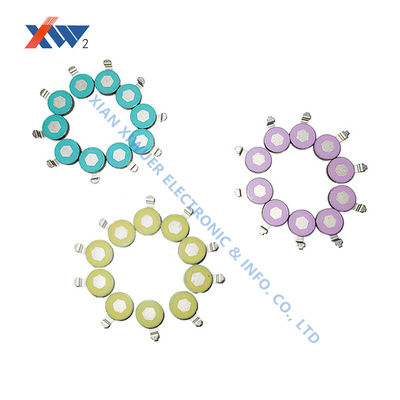

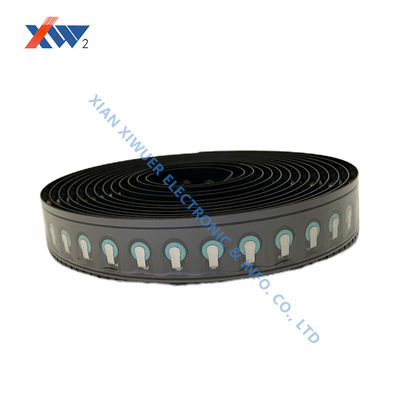

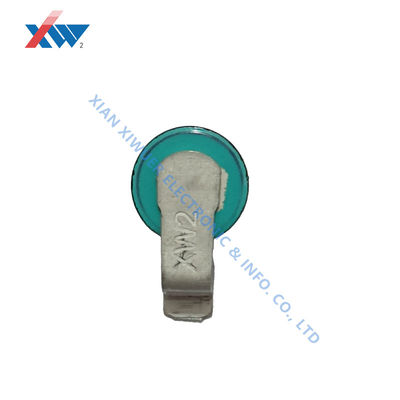

The circular chip varistor is a new type of high-energy and high-focus chip varistor widely used in LED lamps, linear solutions, LED drive power, DOB, ACLED, etc. Its appearance is in the shape of a button, which is convenient and suitable for applications in small spaces. It is produced by automated machines, has high production capacity, competitive prices, many certifications, and is environmentally friendly. It is packaged in rolls for easy machine placement. It is a good choice to replace traditional plug-in varistors.
Features
-
Production speed can be improved
-
Labor costs can be reduced
-
High-energy patch pressure sensitive
Dimension
Application
- lighting electronics
Technical Parameter
|
Item
Part NO. |
Varistor Voltage @1mA |
Maximum Allowable Voltage |
Leakage current |
Rated Wattage |
Capacitance |
Maximum limiting Voltage @8/20μs |
Maximum Circulation energy |
||
| VDC | VAC | VDC | A | W |
|
VDC |
Ip-A |
KV/KA |
|
| MYG3-05K175 | 270± 10% | 175 | 220 | ≤ 20 | 0. 10 | 75 | 475 | 5 | 1.0/0.5 |
| MYG3-05K300 | 470± 10% | 300 | 380 | ≤ 20 | 0. 10 | 55 | 810 | 5 | 1.0/0.5 |
| MYG3-05K325 | 510± 10% | 320 | 410 | ≤ 20 | 0. 10 | 55 | 875 | 5 | 1.0/0.5 |
| MYG3-05K360 | 560± 10% | 350 | 450 | ≤ 20 | 0. 10 | 50 | 960 | 5 | 1.0/0.5 |
| MYG3-05K385 | 620± 10% | 385 | 510 | ≤ 20 | 0. 10 | 50 | 960 | 5 | 1.0/0.5 |
| MYG3-07K175 | 270± 10% | 175 | 220 | ≤ 20 | 0.25 | 150 | 455 | 10 | 2.0/ 1.0 |
| MYG3-07K300 | 470± 10% | 300 | 380 | ≤ 20 | 0.25 | 90 | 775 | 10 | 2.0/ 1.0 |
| MYG3-07K325 | 510± 10% | 320 | 410 | ≤ 20 | 0.25 | 85 | 845 | 10 | 2.0/ 1.0 |
| MYG3-07K360 | 560± 10% | 350 | 450 | ≤ 20 | 0.25 | 80 | 930 | 10 | 2.0/ 1.0 |
| MYG3-07K385 | 620± 10% | 385 | 510 | ≤ 20 | 0.25 | 80 | 1025 | 10 | 2.0/ 1.0 |
| MYG3-10K175 | 270± 10% | 175 | 220 | ≤ 20 | 0.40 | 380 | 455 | 25 | 4.0/2.0 |
| MYG3-10K300 | 470± 10% | 300 | 380 | ≤ 20 | 0.40 | 250 | 775 | 25 | 4.0/2.0 |
| MYG3-10K325 | 510± 10% | 320 | 410 | ≤ 20 | 0.40 | 230 | 845 | 25 | 4.0/2.0 |
| MYG3-10K360 | 560± 10% | 350 | 450 | ≤ 20 | 0.40 | 210 | 930 | 25 | 4.0/2.0 |
| MYG3-10K385 | 620± 10% | 385 | 510 | ≤ 20 | 0.4 | 190 | 1025 | 25 | 4.0/2.0 |
