3000VAC High Voltage Ceramic Capacitor 4700pF Ring Ceramic Capacitor XIWUER

Product Description:

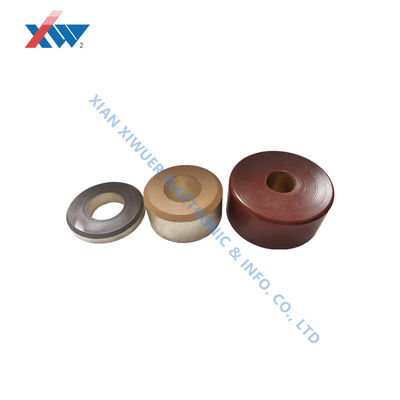

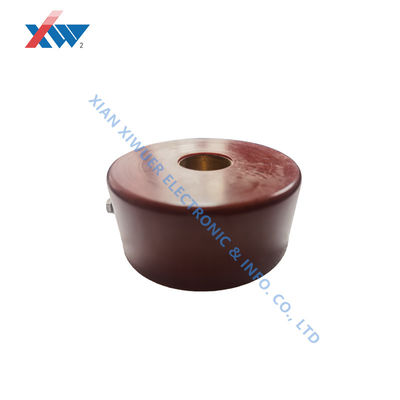

Ring-shaped ceramic dielectric capacitor is composed of two sets of internal electrodes, each set being connected to an end electrode.

Every set has one or more conductive films, with ceramic gaps between adjacent conductive films of different internal electrodes. This is in turn alternately laminated with dielectric film layers and dielectric protection layers, forming a homogeneous capacitor body.

The dielectric protection layer and the dielectric film layer are both annular bodies, and the two groups of electrodes have an annular film surface. The capacitor body is formed in a cylindrical shape with a through hole.

The terminal electrode comprises an outer ring end electrode and an internal ring end electrode. The metallized film of the internal ring end electrode covers the inner wall of the through hole, and the metallized outer ring terminal electrode covers the outer wall of the cylinder.

The ring-shaped ceramic dielectric capacitor offered here perfectly suppresses high-frequency electrical interferences of signals or transmission wires while having a good pressure-resistant performance. Also provided are preparation and application methods of the capacitor.

Features:

A perfect piece of communication equipment comes with some essential features. High frequency response is one important feature of this equipment. It ensures that the transmission signal does not leak and remain secure. This equipment also has high voltage AC resistance that gives it the ability to withstand the power of the transmission signal. Lastly, this communication equipment is small in size which makes it easy and convenient to install.

Technical Parameters:

Applications:

H30D-6 inductors are mainly used in cable television electromagnetic interference (EMI) suppression devices. When in use, they feature an impressively wide operating temperature range of -40°C to +115°C. Moreover, they boast a dc resistance of 90 milliohms and are able to withstand up to 6 amperes of current. Last but not least, they come with several termination options, including pre-tinned, tinned, and bare-wire ones.

Customization:

XIWUER provides high voltage ceramic capacitor customization services with the following product features:

• Brand Name: XIWUER
• Place of Origin: XIAN, CHINA
• Certification: ISO9001, ISO14001, ISO45001, CCC
• Minimum Order Quantity: 1 unit
• Price: Negotiable
• Packaging Details: Carton
• Delivery Time: 5-8 days
• Payment Terms: L/C, T/T
• Supply Ability: 4,000,000 units a year
• Dielectric Strength: 2000VAC
• Package Type: Radial
• Size: 20mm X 7mmX 5mm
• Color: Brown, Red
• Insulation Resistance: 3000MΩ

XIWUER is a reliable source for high voltage ceramic electronics, offering high voltage ceramic capacitor customization services to meet your requirements.

Packing and Shipping:

High Voltage Ceramic Capacitor Packaging and Shipping

High Voltage Ceramic Capacitors are packaged and shipped in bubble wrap, foam, and static shielding bags. Bubble wrap is used to protect the capacitor from any shock when in transit. Foam is used to fill any empty space in the package, and static shielding bags are used to dissipate any static electricity from the capacitor. The capacitor is then sealed in its package and shipped to its destination.
