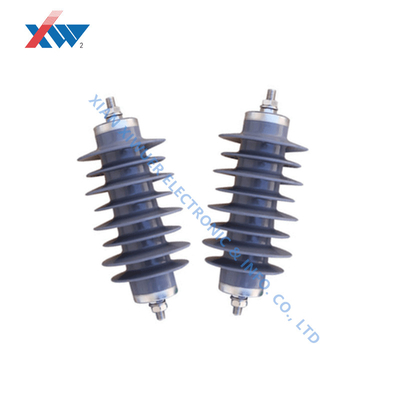

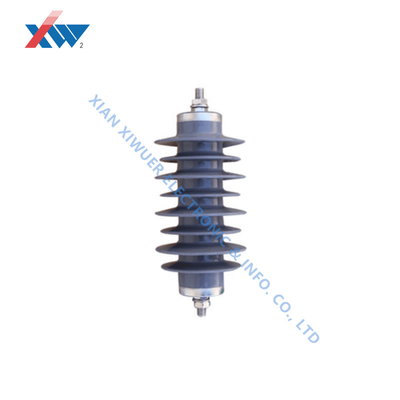

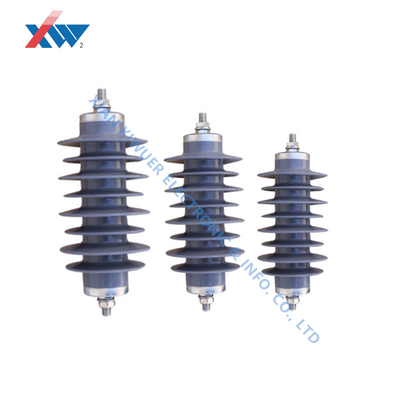

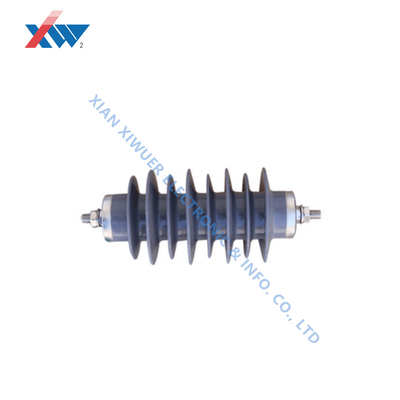

35kv~110kv Composite Pin Insulator Distribution Type Polymer-housed Metal Oxide Surge Arresters Light Weight
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Rated Voltage(kV) | 24kV | MCOV | 19.2kV |
|---|---|---|---|
| Steep Current Impulse | ≤76kV | Switching Current Impulse | ≤61.6kV |
| Lighting Current Impulse8/20 | ≤72kV | 4/10us | 100KA |
| Highlight | 35kv~110kv composite pin insulator,distribution Type Metal Oxide Surge Arresters,polymer-housed composite pin insulator |
||
Product Description
35kv~110kv composite pin insulator distribution type polymer-housed metal oxide surge arresters light weight
Features
- The silicone rubber shed adopts an integral injection molding process, which solves the reliability problem of electrical breakdown at the interface of composite insulators.
- The core body and metal accessories adopt the most advanced technology, galvanized accessories with high strength, beautiful appearance, small size, light weight and corrosion resistance.
- The product structure is reliable, does not damage the core shaft, and gives full play to its mechanical strength. Silicone rubber greenhouses have good hydrophobic properties, and the overall structure ensures that the insulation is protected from moisture. There is no need for preventive insulation monitoring and testing, no cleaning, and less daily maintenance.
Application
Composite pin insulators are particularly suitable for use in polluted areas, high mechanical tensile loads, large spans and compact circuits. It has the characteristics of light weight, small size, not easy to break, not easy to bend, high torsional strength, and good explosion-proof performance.
Technical Parameter
| Discharge current | Specification | Rated voltage | MCOV | Residual voltage | Current impulse withstand capability | |||
| Steep current impulse | Switching current impulse | lighting current impulse8/20 | 4/10us | 2ms | ||||
| kA | kV | kV | ≤kV | ≤kV | ≤kV | kA | A | |
| 10 | YH10W-3 | 3 | 2.55 | 9.5 | 7.7 | 9 | 100 | 500 |
| YH10W-6 | 6 | 5.1 | 19.5 | 15.4 | 18 | 100 | 500 | |
| YH10W-9 | 9 | 7.65 | 28.5 | 23.1 | 27 | 100 | 500 | |
| YH10W-12 | 12 | 10.2 | 38 | 30.8 | 36 | 100 | 500 | |
| YH10W-15 | 15 | 12.7 | 47.5 | 38.5 | 45 | 100 | 500 | |
| YH10W-18 | 18 | 15.3 | 57 | 46.2 | 54 | 100 | 500 | |
| YH10W-21 | 21 | 17 | 66.5 | 53.9 | 63 | 100 | 500 | |
| YH10W-24 | 24 | 19.2 | 76 | 61.6 | 72 | 100 | 500 | |
| YH10W-27 | 27 | 21.9 | 85.5 | 69.3 | 81 | 100 | 500 | |
| YH10W-30 | 30 | 24.4 | 95 | 76.5 | 90 | 100 | 500 | |
| YH10W-33 | 33 | 26.8 | 104.5 | 84.7 | 99 | 100 | 500 | |
| YH10W-36 | 36 | 29 | 114 | 92.4 | 108 | 100 | 500 |
|
