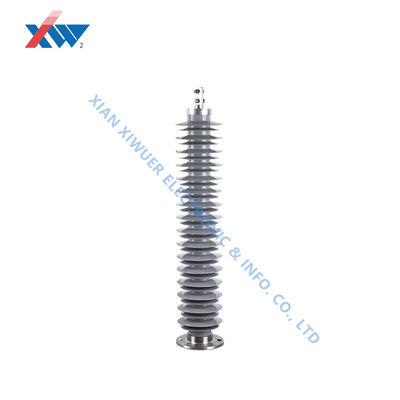

35kv Gapless Lightning Arrester Power Station Type Polymer-housed Metal Oxide Surge Arresters Composite Insulator

  • 35kv Gapless Lightning Arrester Power Station Type Polymer-housed Metal Oxide Surge Arresters Composite Insulator
  • 35kv Gapless Lightning Arrester Power Station Type Polymer-housed Metal Oxide Surge Arresters Composite Insulator
  • 35kv Gapless Lightning Arrester Power Station Type Polymer-housed Metal Oxide Surge Arresters Composite Insulator
  • 35kv Gapless Lightning Arrester Power Station Type Polymer-housed Metal Oxide Surge Arresters Composite Insulator
Place of Origin XIAN,CHINA
Brand Name Qing Zhu
Certification UL,TUV,CCC,ROHS
Model Number YH5WR-42/134
Minimum Order Quantity 1 unit
Price USD, Negotiable, unit
Packaging Details Carton
Delivery Time 5-7 days
Payment Terms L/C, T/T
Supply Ability 4,000,000 units/year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Rated Voltage(kV) 42kV Virtual Value Of Continuous Voltage (kV) 23.4kV
D.C. 1mA Reference Voltage(kv) ≥73kV MAX.leakage (uA)under 0.75 Times Of D.C.reference Voltage 50
8/20 Under The Lighting Current Impulse 134kV 30/60 Under Switching Current Impulse 105kv
Highlight

35kv gapless lightning arrester

,

polymer-housed gapless lightning arrester

,

composite insulator Metal Oxide Surge Arresters
Leave a Message
Product Description

35kv gapless lightning arrester power station type polymer-housed metal oxide surge arresters composite insulator



Features



  • It has strong impact resistance and earthquake resistance.
  • Good brittleness resistance and creep resistance
  • Not easily broken, bending resistance, high torsional strength, can withstand internal pressure, and has strong explosion-proof properties. Excellent electrical properties and high mechanical strength

Application

Power station type arresters are suitable for high-voltage environments such as power transmission, substation, and distribution stations. When an overvoltage occurs in the system and the peak value exceeds the gap discharge voltage, the gap of the arrester is broken down, and the impulse current flows into the earth through the valve plate. Due to the nonlinear characteristics of the valve plate, the valve type arrester can effectively protect the equipment.

Technical Parameter


Voltage class

 Service scope Virtual value of nominal system voltage (kV)  Chinese standard arrester model  Virtual value of arrester rated voltage (kV) Gapless arrester Gapped arrester Peak value of residual voltage (kV) (no larger than) 2000 us square wave flow capacity (A) 4/10 high current compression capacity (KA)
 Virtual value of continuous voltage (kV)  D.C. 1mA reference voltage(kv) is no less than

MAX.leakage (uA)under 0.75 times Of D.C.reference voltage

  Virtual value of P.F. discharge voltage(kV)is no less than Peak value of 1.2/50 impulse discharge voltage (kV) is no larger than Max.Conduction current (uA)

8/20 under the lighting current impulse

30/60 under switching current impulse

 1/4 under steep current impulse
10kV Distribution type 10 YH5WS-12.7/50 12.7 6.6 25 50 - - - 50 42.5 57.5 100 65
10 YH5WS-17/50 17 13.6 25 50 - - - 50 42.5 57.5 75 40
10 YH5CS-12.7/45 12.7 - - - 26 45 20 45 38.4 51 75 40
 Power type 10 YH5WZ-12.7/45 12.7 6.6 24 50 - - - 45 38.3 51.8 200 65
10 YH5WZ-17/45 17 13.6 24 50 - _ - 45 38.3 51.8 200 65
10 YH5CZ-12.7/41 12.7 - - - 26 41 20 41 35 46 200 65
Capacitor type 10 YH5WR-12.7/46 12.7 6.6 24 50 - - - 46 35   400 65
10 YH5WR-17/46 17 13.6 24 50 - - - 46 35 _ 400 65
10 YH5CR-12.7/41 12.7 - - - 26 41 20 41 33 - 400 65
 Generator type 10.5* YH5WD-12.7/31 12.7 6.6 18.6 50 - - - 31 25 34.7 400 65
10.5* YH5WD-13.5/31 13.5 10.5 18.6 50 - 一   31 25 34.7 400 65
10.5* YH5CD-12.7/28 12.7 - - - 25 28 20 28 22.5 32 400 65
H Q Q* VUI^A/R ^ 7 R/AC 4 7IZ     50       40 32 44.8 400 65
l 0.0 YnDVVU-1 /.0/4U     z4.4 -
15.75* YH5WD-20/45 20 15.75 28 50   -   45 36 50.4 400 65
18.0* YH5WD-23/51 23 18 31.9 50 -   - 51 40.8 57.2 400 65
20.0* YH5WD-25/56.2 25 20 35.4 50 - - - 56.2 45 62.9 400 65
Electric motor type 10.5* YH2.5WD-12.7/31 12.7 6.6 18.6 50 - - - 31 25 34.7 200 65
10.5* YH2.5WD-13.5/31 13.5 10.5 18.6 50   - - 31 25 34.7 200 65
10.5* YH2.5CD-12.7/28 12.7 - - - 25 28 20 28 22.51 32 200 65
 Neutral point type 10.5* YH1.5W-8/19 8 6.4 11.4 50 - - - 19 15.9 - 200 65
13.8* YH1.5W-10.5/23 10.5 8.4 14.9 50 - - - 23 19.2 - 200 65
15.75* YH1.5W-12/26 12 9.6 17 50 - - - 26 21.6 - 200 65
18.0* YH1.5W-13.7/29.2 13.7 11 19.2 50 - - - 29.2 24.3 - 200 65
20.0* YH1.5W-15.2/31.7 15.2 12.2 21.6 50 - - - 31.7 26.4 - 200 65
35kV  Power type 35 YH5WZ-51/134 51 40.8 73 50 - - - 134 114 154 400 65
35 YH5WZ-42/134 42 23.4 73 50 - - - 134 114 154 400 65
35 YH5CZ-42/124 42 - - - 80 124 20 124 100 143 400 65
Capacitor type 35 YH5WR-84/134 51 40.8 73 50 - - - 134 105 - 400 65
35 YH5WR-42/134 42 23.4 73 50 - - - 134 105 - 400 65
35 YH5CR-42/124 42 - - _ 80 124 20 124 100 - 400 65
 Line-type 35 YH5WX-51/134 51 40.8 73 50 - - - 134 114 154 400 65
35 YH5WX-54/150 54 43.2 77 50 - - - 150 128 169 400 65
35 YH5CX-42/120 42 - - - 80 120 20 120 100 138 400 65
35 YH5CX-42/150 42 - - - 80 150 20 150 128 169 400 65
 Neutral point type 35 YH1.5W-30/80 30 24 44 50 - - - 80 67.5 - 400 65
