12kV 34pF High Voltage Live Line Capacitors Used In Live Line Indication Applications
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Nominal Working Voltage | 12kV | Capacitance | 1KHZ 20℃ 34PF±10％ |
|---|---|---|---|
| Power Frequency Over Voltage Test | 52KVAC 5min | Partial Discharge | 13.2kVAC≤10PC |
| 1.2 / 50µs Impulse Withstanding Test | 75KV | Solder Temperature | 221℃ |
| Highlight | 12kV Live Line Capacitors,High Voltage Live Line Capacitors,34pF Live Line Capacitors |
||
Product Description

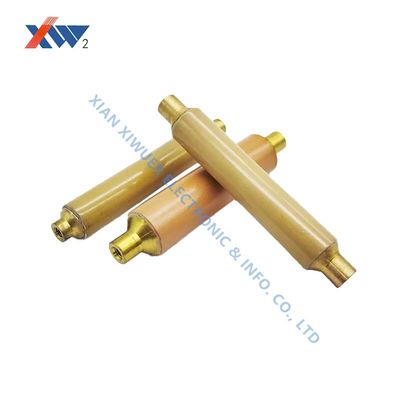

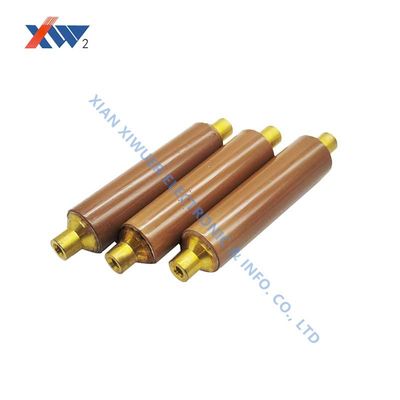

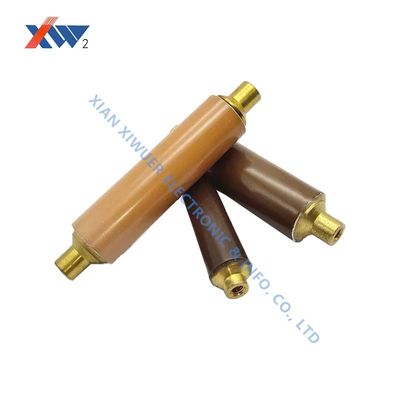

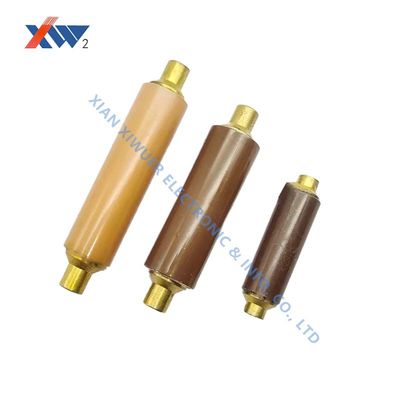

12kV 34pF high voltage live line capacitors used in live line indication applications
Description
Live line capacitors are a type of high-voltage capacitor, usually used in applications that require high voltage and high frequency, such as aerospace, military radar, laser weapons, smart grids, etc.
Features
- High voltage and high frequency characteristics: Able to withstand extremely high voltage and frequency, suitable for high voltage power supplies and pulse circuits.
- Low dielectric loss: Low loss at high frequencies, ensuring high efficiency of capacitors.
- High reliability: Using military materials and advanced processes, it has high reliability and long life.
- The dielectric of these capacitors is usually barium titanate (BaTi03), and is sintered at high temperature to form a solid ceramic structure
Application
- Used to indicate the presence of voltage and detect faults in power frequency high voltage distribution switchgear (3.6kV-40.5kV systems).
Dimension
Technical Parameter
| Nominal Voltage | Nominal Capacitance |
Capacitance Testing Frequency:1kHz±20% Testing Voltage:1V±0.2V； |
Withstanding Voltage (Insulating Oil) |
Partial Discharge | Lightning Impulse kV (Peak Value)(Insulating Oil)1.2/5us |
| 3.6kVAC | 230 | 210~240 | 32kVAC5min | 3.96kVAC≦10pC | 40 |
| 7.2kVAC | 5 | 4~6 | 41kVAC5min | 7.92kVAC≦10pC | 60 |
| 40 | 36~44 | ||||
| 150 | 140~170 | ||||
| 12kVAC | 5 | 4~6 | 52kVAC5min | 13.2kVAC≦10pC | 75 |
| 20 | 18~22 | ||||
| 40 | 36~44 | ||||
| 50 | 45~55 | ||||
| 125 | 110~140 | ||||
| 200 | 180~210 | ||||
| 300 | 270~330 | ||||
| 24kVAC | 5 | 4~6 | 70kVAC5min | 26.4kVAC≦10pC | 125 |
| 15 | 13~17 | 26.4kVAC≦10pC | |||
| 35 | 35~42 | 26.4kVAC≦4pC | |||
| 50 | 45~50 | 26.4kVAC≦10pC | |||
| 80 | 70~90 | 26.4kVAC≦10pC | |||
| 150 | 125~180 | 26.4kVAC≦5pC | |||
| 200/400/500 | 180~220 | 26.4kVAC≦10pC | |||
| 40.5kVAC | 5 | 4~6 | 115kVAC5min | 44.5kVAC≦10pC | 185 |
| 10 | 8.5~11.5 | 44.5kVAC≦5pC | |||
| 45 | 40~50 | 44.5kVAC≦10pC | |||
| 100 | 90~110 | 44.5kVAC≦10pC |
