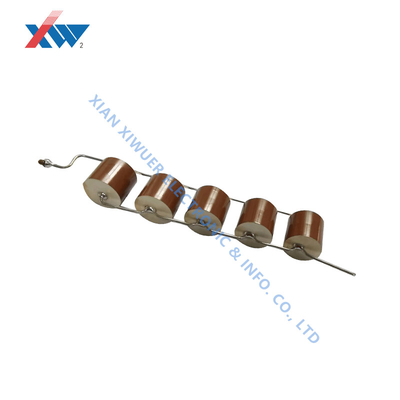

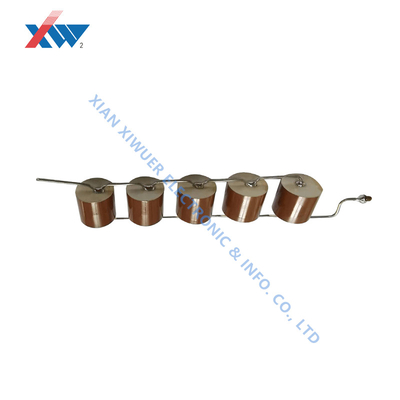

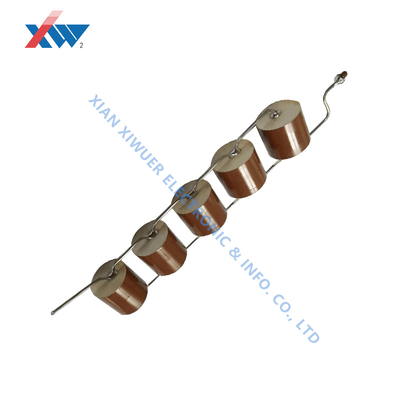

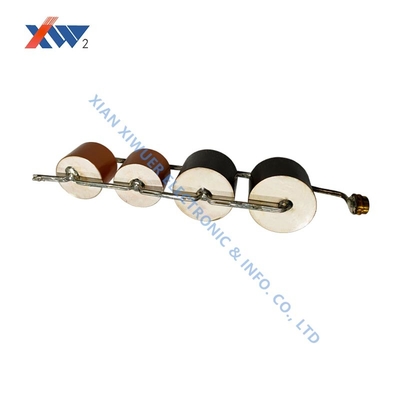

20kv 10000pF High Voltage Ceramic Capacitor Stacked Pulse Capacitor High Frequency

20kv 10000pF high voltage ceramic capacitor stacked ceramic capacitor pulse capacitor high frequency





Features



• Small size
• High voltage resistance
• Excellent charge and discharge performance



Application



Ceramic multilayer capacitors are mainly used in low-power high-voltage multiplier circuit modules

• Airport security X-ray machine
• Medical equipment power supply
• Electrostatic powder spray gun
• Electrostatic spray equipment
• Electrostatic generating circuit
• X-ray equipment
• Medical diagnostic X-ray equipment
• High-voltage negative ion generator
• High-voltage DC generator
• Voltage multiplier circuit module



Dimension



Technical Parameter



Part No.	Nominal capacitance(pF) 1KHz20℃	Tolerance	Rated Voltage KVDC	pcs/stack	Dimension(mm)
					D	L	t
CT813	1000	±20%	20	10	11.0	59.0	5.0
	1000	±20%	15	11	10.5	59.3	4.5
	1000	±20%	12	12	12.8	58.7	3.8
	1000	±20%	10	13	9.8	63.5	4.0
	510	±20%	20	10	10.0	44.0	3.5
	510	±20%	15	11	9.7	46.1	3.3
	510	±20%	12	12	9.3	46.7	3.0
	510	±20%	10	13	9.3	50.5	3.0
	330	±20%	20	10	8.1	44.0	3.5
	330	±20%	20	12	9.2	60.0	4.5
	330	±20%	15	11	7.8	46.1	3.3
	330	±20%	12	12	7.5	46.3	3.0
	330	±20%	12	12	8.7	50.0	3.5
	330	±20%	10	13	7.5	50.5	3.0
	250	±20%	20	10	7.0	44.0	3.5
	250	±20%	15	11	6.8	46.1	3.3
	250	±20%	12	12	6.5	46.7	3.0
	250	±20%	10	13	6.5	50.5	3.0
	100	±20%	20	10	7.0	44.0	3.5
	100	±20%	15	11	6.8	46.1	3.3
	100	±20%	12	12	6.5	46.7	3.0
	100	±20%	10	13	6.5	50.5	3.0
