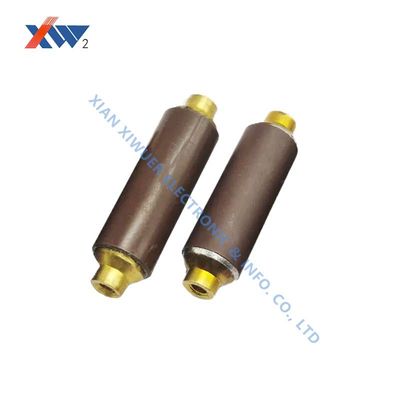

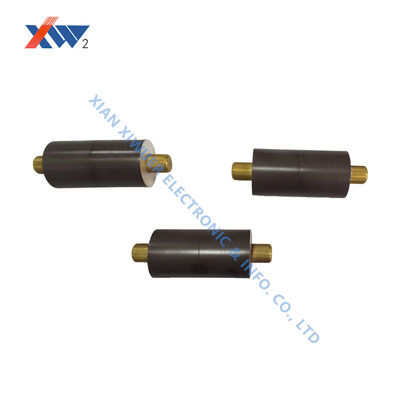

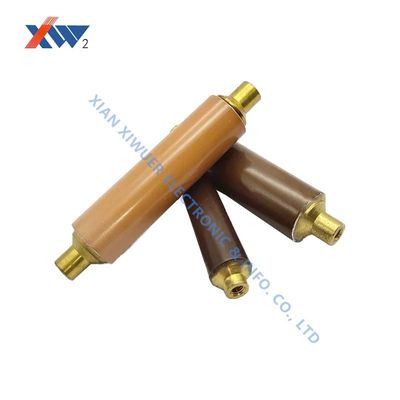

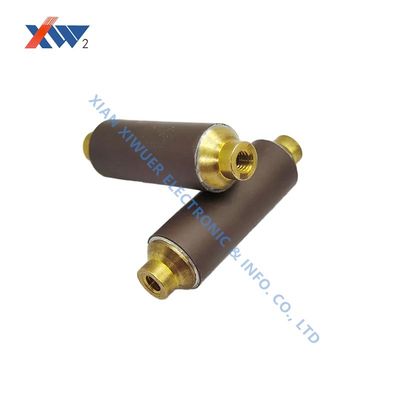

220pF Live Line Ceramic Capacitor For Medium Voltage Switchgear 12kV High Voltage Ceramic Capacitor

 220pF live line ceramic capacitor  used for medium voltage switchgear 12kV high voltage ceramic capacitor





Features



• Small size
• Non-polarity performance
• Stable, good insulation, low loss

Application



Ceramic multilayer capacitors are mainly used in low-power high-voltage multiplier circuit modules



• Medical equipment power supply
• Electrostatic spray equipment
• Electrostatic generating circuit
• X-ray equipment
• High-voltage negative ion generator
• High-voltage DC generator
• Voltage multiplier circuit module



Dimension



Technical Parameter



Nominal Voltage	Nominal Capacitance	Capacitance Testing Frequency:1kHz±20% Testing Voltage:1V±0.2V；	Withstanding Voltage (Insulating Oil)	Partial Discharge	Lightning Impulse kV (Peak Value)(Insulating Oil)1.2/5us
3.6kVAC	230	210~240	32kVAC5min	3.96kVAC≦10pC	40
7.2kVAC	5	4~6	41kVAC5min	7.92kVAC≦10pC	60
	40	36~44
	150	140~170
12kVAC	5	4~6	52kVAC5min	13.2kVAC≦10pC	75
	20	18~22
	40	36~44
	50	45~55
	125	110~140
	200	180~210
	300	270~330
24kVAC	5	4~6	70kVAC5min	26.4kVAC≦10pC	125
	15	13~17		26.4kVAC≦10pC
	35	35~42		26.4kVAC≦4pC
	50	45~50		26.4kVAC≦10pC
	80	70~90		26.4kVAC≦10pC
	150	125~180		26.4kVAC≦5pC
	200/400/500	180~220		26.4kVAC≦10pC
40.5kVAC	5	4~6	115kVAC5min	44.5kVAC≦10pC	185
	10	8.5~11.5		44.5kVAC≦5pC
	45	40~50		44.5kVAC≦10pC
	100	90~110		44.5kVAC≦10pC
