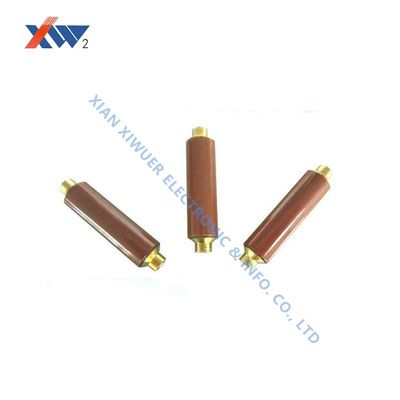

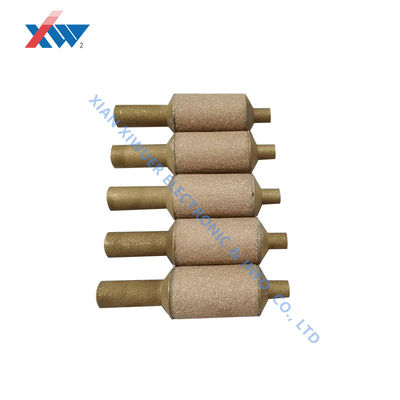

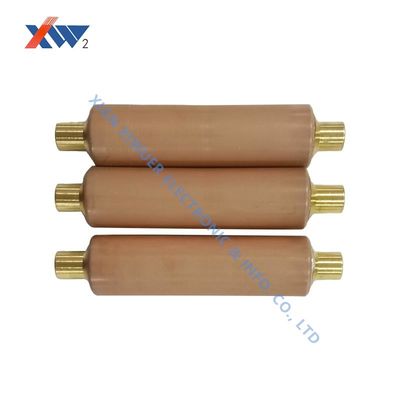

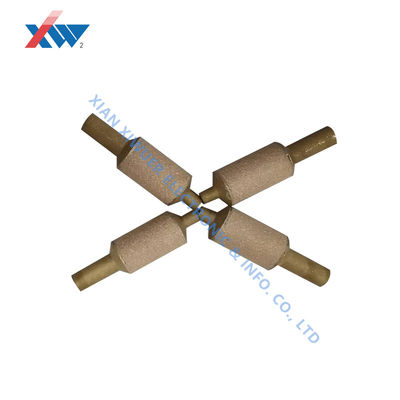

High Voltage 24KVAC Ceramic Capacitor 200pF For Long Life Span And High Withstand Voltage

24KVAC ceramic capacitor 200pF long life span good quality with high voltage for ceramic insulator high withstand voltage



Features



• Long product life
• Made of SrTiO3 ceramic material
• Low dielectric loss
• High withstand voltage
• Capacitance accuracy 10%
• Low bias characteristics



Application



Ceramic multilayer capacitors are mainly used in low-power high-voltage multiplier circuit modules



• Medical equipment power supply
• Electrostatic spray equipment
• Electrostatic generating circuit
• X-ray equipment
• High-voltage negative ion generator
• High-voltage DC generator
• Voltage multiplier circuit module



Dimension



Technical Parameter



Nominal Voltage	Nominal Capacitance	Capacitance Testing Frequency:1kHz±20% Testing Voltage:1V±0.2V；	Withstanding Voltage (Insulating Oil)	Partial Discharge	Lightning Impulse kV (Peak Value)(Insulating Oil)1.2/5us
3.6kVAC	230	210~240	32kVAC5min	3.96kVAC≦10pC	40
7.2kVAC	5	4~6	41kVAC5min	7.92kVAC≦10pC	60
	40	36~44
	150	140~170
12kVAC	5	4~6	52kVAC5min	13.2kVAC≦10pC	75
	20	18~22
	40	36~44
	50	45~55
	125	110~140
	200	180~210
	300	270~330
24kVAC	5	4~6	70kVAC5min	26.4kVAC≦10pC	125
	15	13~17		26.4kVAC≦10pC
	35	35~42		26.4kVAC≦4pC
	50	45~50		26.4kVAC≦10pC
	80	70~90		26.4kVAC≦10pC
	150	125~180		26.4kVAC≦5pC
	200/400/500	180~220		26.4kVAC≦10pC
40.5kVAC	5	4~6	115kVAC5min	44.5kVAC≦10pC	185
	10	8.5~11.5		44.5kVAC≦5pC
	45	40~50		44.5kVAC≦10pC
	100	90~110		44.5kVAC≦10pC
