Surge Protector Device Circuit Breaker 230V Protect For First Level Second Level Power Supply Equipment
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| No Tripping Inrush Current Ie | 20 KA (8/20 μs ) | No Tripping Surge Current Tolerance | 10 KA (8/20 μs ) |
|---|---|---|---|
| Rated Short Circuit Capacity | 25kA | Rated Operating Voltage | 230V |
| Rated Insulation Voltage | 500V | Rated Operating Frequency | 60Hz |
| Highlight | 230V Surge protector device,Second Level Surge protector device,First Level Surge protector device |
||
Product Description

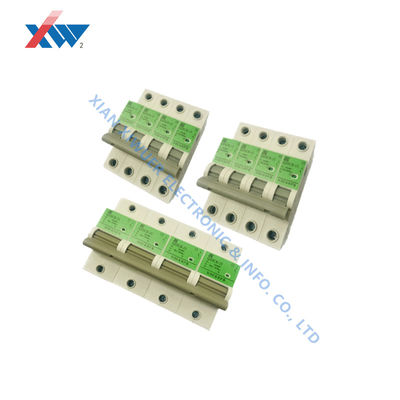

Surge protector device circuit breaker 230V protect for first level second level power supply equipment
Description
MYS4 type overvoltage protector is an overvoltage protection device with a modular combination and self-alarm function. Can be matched with CG2 (I, II) type alarms produced by our factory use.
Features
-
Parameter control tripping mechanism, realistic selection and analysis of the passing current
-
The residual voltage of the impact current is low, comparable to that of the fuse protector
Application
Prevent equipment from overloading: When the current in the circuit exceeds the rated current of the equipment, the backup protector can cut off the circuit in time to prevent the equipment from being damaged due to overloading.
Technical Parameter
| Specifications | QZSCB -20 | QZSCB -40 | QZSCB-60 |
| No tripping inrush current Ie | 20 kA (8/20 μs ) | 40 kA (8/20 μs ) | 60 kA (8/20 μs ) |
| No tripping surge current tolerance |
10 kA (8/20 μs ) 20 kA (8/20 μs ) |
20 kA (8/20 μs ) 40 kA (8/20 μs ) | 30 kA (8/20 μs ) 60 kA (8/20 μs ) |
| Rated short circuit capacity Icn | 25kA | 50kA | 50kA |
| Electrical symbols |  |
||
| Rated operating voltage ( Ue ) | 230/400 V | ||
| Rated insulation voltage (Ui) | 500V | ||
| Rated operating frequency (f) | 50/60Hz | ||
| Current trip value Io | 3±1A | ||
| Number of poles | 1/2/3/4 | ||
| Protection class (front panel) | IP20 | ||
| Protection class (terminal) | IP20 | ||
| Terminal type | Cage terminal blocks | ||
| Wiring Capacity | 2.5～25mm 2 (soft wire), 2.5～35mm 2 (hard wire) | ||
| Tightening torque (Tn) | 3.5 N·m | ||
| Maximum allowable operating current of remote signal contact |
2A/250VAC, 11, 12 normally closed / 11, 14 normally open (closed state) (S) |
||
| Shell material | PBT UL94V0 | ||
| Dimensions | 90×18×66.5mm (level: 1P) | ||
| Operating temperature |
Temperature -40℃～70℃ Relative humidity: ≤ 95% ( at 25℃ ) |
||
| Storage temperature |
Temperature -40℃～70℃ Relative humidity: ≤ 95% ( at 25℃ ) |
||
| Installation Rails | En60715 (35mm) | ||
| Installation | Any horizontal or vertical position | ||
| Wire entry method | Wire entry from both top and bottom | ||
Dimension
Circuit Diagram
