High Voltage Ceramic Capacitor Core Rod 3.6kv 230pF with 3.96kVAC Partial Discharge

  • High Voltage Ceramic Capacitor Core Rod 3.6kv 230pF with 3.96kVAC Partial Discharge
  • High Voltage Ceramic Capacitor Core Rod 3.6kv 230pF with 3.96kVAC Partial Discharge
Place of Origin XIAN, CHINA
Brand Name XIWUER
Certification ISO9001,ISO14001,ISO45001
Model Number 3.6KV- 230PF
Minimum Order Quantity 1 piece
Price Negotiable
Packaging Details Carton
Delivery Time 5-7 days
Payment Terms L/C,T/T
Supply Ability 8,000,000 a year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Rated Voltage 3.6kVAC Nominal Capacitance(pF) 230
Nominal Capacitance RangeTest Frequency 1kHz+20%TestVoltage:1V+0.2V:210~240 Withstand Voltage(In The Insulating Oil) 32kVAC/5min
Partial Discharge 3.96kVAC≤10pC Lightning Impulse kV1.2/5μs 40
Highlight

3.96kVAC Ceramic Capacitor Core Rod

,

230pF Ceramic Capacitor Core Rod
You can tick the products you need and communicate with us in the message board.
Leave a Message
Product Description

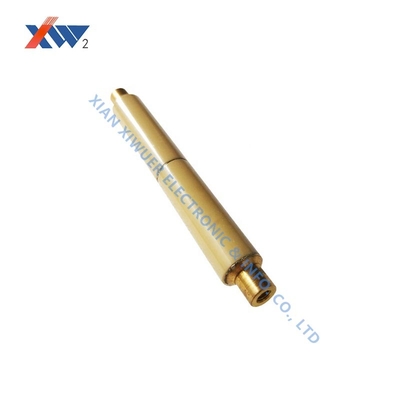

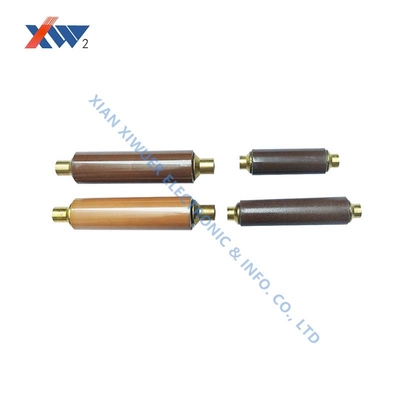

High Voltage Ceramic Capacitor Core Rod 3.6kV 230pF
Technical Specifications
Attribute Value
Rated Voltage 3.6kVAC
Nominal Capacitance (pF) 230
Nominal Capacitance Range Test Frequency 1kHz+20% Test Voltage: 1V+0.2V: 210~240
Withstand Voltage (In the insulating oil) 32kVAC/5min
Partial Discharge 3.96kVAC≤10pC
Lightning Impulse kV1.2/5μs 40
Product Overview

This high voltage ceramic capacitor core rod is designed for use in 3.6kV~40.5kV high voltage presence indicating devices.

Key Features
  • Rated Voltage: 3.6kVAC
  • Nominal Capacitance: 230pF
  • Test Frequency: 1kHz+20% at 1V+0.2V (210~240pF range)
  • Withstands 32kVAC for 5 minutes in insulating oil
  • Partial discharge ≤10pC at 3.96kVAC
  • Lightning impulse withstand: 40kV (1.2/5μs)
Customization & Compliance

Dimensions can be customized according to customer requirements.

Partial discharge does not exceed 5pC at 1.1 times rated voltage unless otherwise specified.

Complies with standards:

  • DL/T538-2006 (High Voltage Presence Indication Device)
  • JBT10305-2001 (Technical conditions for post insulator of organic material in the 3.6kV-40.5kV high voltage equipment)
Important Notes

For installations below 100 meters or in high altitude areas, please specify in order notes.

Special care required: Protect product from damage, moisture, and contamination.
