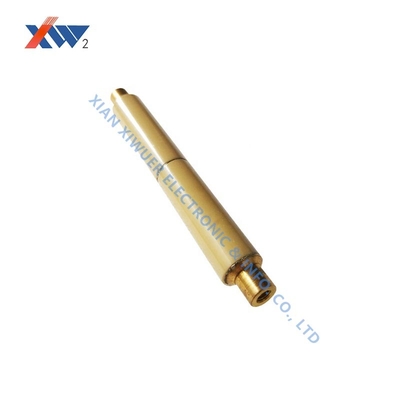

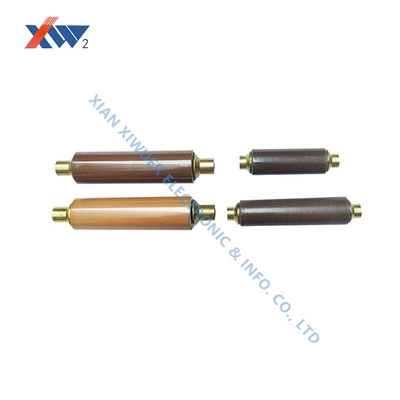

High Voltage Ceramic Capacitor Core Rod 3.6kV 230pF
Technical Specifications
| Attribute | Value |
|---|---|
| Rated Voltage | 3.6kVAC |
| Nominal Capacitance (pF) | 230 |
| Nominal Capacitance Range Test Frequency | 1kHz+20% Test Voltage: 1V+0.2V: 210~240 |
| Withstand Voltage (In the insulating oil) | 32kVAC/5min |
| Partial Discharge | 3.96kVAC≤10pC |
| Lightning Impulse kV1.2/5μs | 40 |
Product Overview
This high voltage ceramic capacitor core rod is designed for use in 3.6kV~40.5kV high voltage presence indicating devices.
Key Features
- Rated Voltage: 3.6kVAC
- Nominal Capacitance: 230pF
- Test Frequency: 1kHz+20% at 1V+0.2V (210~240pF range)
- Withstands 32kVAC for 5 minutes in insulating oil
- Partial discharge ≤10pC at 3.96kVAC
- Lightning impulse withstand: 40kV (1.2/5μs)
Customization & Compliance
Dimensions can be customized according to customer requirements.
Partial discharge does not exceed 5pC at 1.1 times rated voltage unless otherwise specified.
Complies with standards:
- DL/T538-2006 (High Voltage Presence Indication Device)
- JBT10305-2001 (Technical conditions for post insulator of organic material in the 3.6kV-40.5kV high voltage equipment)
Important Notes
For installations below 100 meters or in high altitude areas, please specify in order notes.
Special care required: Protect product from damage, moisture, and contamination.
