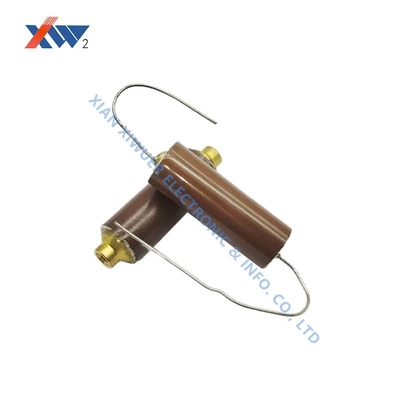

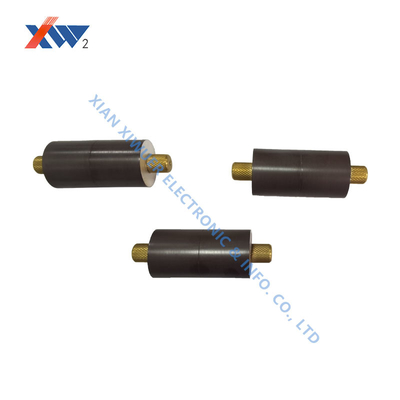

High voltage ceramic capacitor core rod 7.2kv 5pF
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Rated Voltage | 7.2kVAC | Nominal Capacitance(pF) | 5pF |
|---|---|---|---|
| Nominal Capacitance Range Test Frequency1kHz±20% Test Voltage1V±0.2 V | 4~6 | Withstand Voltage(In The Insulating Oil) | 41kVAC/5min |
| Partial Discharge | 7.92kVAC≤10pC | Lightning Impulse kV1.2/5μs | 60 |
You can tick the products you need and communicate with us in the message board.
Product Description
High Voltage Ceramic Capacitor Core Rod 7.2kV 5pF
| Attribute | Value |
|---|---|
| Rated Voltage | 7.2kVAC |
| Nominal Capacitance (pF) | 5pF |
| Nominal Capacitance Range (Test Frequency: 1kHz±20%, Test Voltage: 1V±0.2V) | 4~6 |
| Withstand Voltage (In the insulating oil) | 41kVAC/5min |
| Partial Discharge | 7.92kVAC≤10pC |
| Lightning Impulse kV1.2/5μs | 60 |
Product Description
High voltage ceramic capacitor core rod designed for 7.2kV applications with 5pF nominal capacitance.
Applications
Used for 3.6kV~40.5kV high voltage presence indicating devices.
Key Features
- Rated Voltage: 7.2kVAC
- Nominal Capacitance: 5pF
- Nominal Capacitance Range: 4~6 (Test Frequency: 1kHz±20%, Test Voltage: 1V±0.2V)
- Withstand Voltage (In insulating oil): 41kVAC/5min
- Partial Discharge: 7.92kVAC≤10pC
- Lightning Impulse (kV1.2/5μs): 60
Instructions
Dimensions can be customized according to customer requirements.
PD not more than 5pC at 1.1 times rated voltage without special instructions.
Complies with standards:
- DL/T538-2006 (High Voltage Presence Indication Device)
- JBT10305-2001 (Technical conditions for post insulator of organic material in the 3.6kV~40.5kV high voltage equipment)
For areas below 100 meters or in high altitude areas, please indicate in the order notes.
Special attention: Prevent the product from damage, moisture and contamination.
