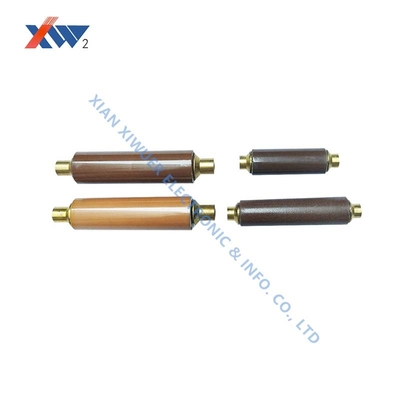

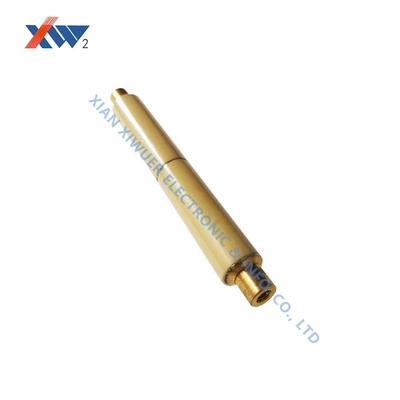

High Voltage Ceramic Capacitor Core Rod 7.2kv 40pF Withstand Voltage of 41kVAC/5min

High Voltage Ceramic Capacitor Core Rod 7.2kv 40pF Withstand Voltage of 41kVAC/5min

High Voltage Ceramic Capacitor Core Rod 7.2kv 40pF Withstand Voltage of 41kVAC/5min

Brand Name: XIWUER
Model Number: 7.2kv 40pF
MOQ: 1
Price: Negotiable
Payment Terms: L/C,T/T
Supply Ability: 8,000,000 a year
Detail Information
Product Description
Detail Information
Place of Origin:
XIAN, CHINA
Certification:
ISO9001,ISO14001,ISO45001
Rated Voltage:
7.2kVAC
Nominal Capacitance(pF):
40pF
Nominal Capacitance Range Test Frequency:1kHz±20% Test Voltage:1V±0.2 V:
36~44
Withstand Voltage(In The Insulating Oil):
41kVAC/5min
Partial Discharge:
7.92kVAC≤10pC
Lightning Impulse kV1.2/5μs:
60
Packaging Details:
Carton
Supply Ability:
8,000,000 a year
Highlight:

41kVAC High Voltage Ceramic Capacitor

,

7.2kv High Voltage Ceramic Capacitor

,

40pF High Voltage Ceramic Capacitor

Product Description
High Voltage Ceramic Capacitor Core Rod 7.2kV 40pF
Technical Specifications
Attribute Value
Rated Voltage 7.2kVAC
Nominal Capacitance (pF) 40pF
Nominal Capacitance Range
(Test Frequency: 1kHz±20%, Test Voltage: 1V±0.2V)		 36~44
Withstand Voltage (In insulating oil) 41kVAC/5min
Partial Discharge 7.92kVAC ≤10pC
Lightning Impulse kV1.2/5μs 60
Product Features
  • Designed for 3.6kV~40.5kV high voltage presence indicating devices
  • Custom dimensions available per customer requirements
  • Partial discharge ≤5pC at 1.1 times rated voltage (standard configuration)
  • Compliant with DL/T538-2006 and JBT10305-2001 standards
Important Notes

Special attention required to prevent product damage, moisture exposure, and contamination.

For installations below 100 meters elevation or in high altitude areas, please specify in order notes.

Certifications
High Voltage Ceramic Capacitor Certification Document 1
High Voltage Ceramic Capacitor Certification Document 2
High Voltage Ceramic Capacitor Certification Document 3
