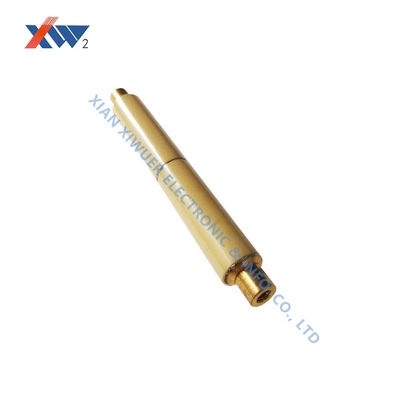

High voltage ceramic capacitor core rod 7.2kv 40pF
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Rated Voltage | 7.2kVAC | Nominal Capacitance(pF) | 40pF |
|---|---|---|---|
| Nominal Capacitance Range Test Frequency1kHz±20% Test Voltage1V±0.2 V | 36~44 | Withstand Voltage(In The Insulating Oil) | 41kVAC/5min |
| Partial Discharge | 7.92kVAC≤10pC | Lightning Impulse kV1.2/5μs | 60 |
You can tick the products you need and communicate with us in the message board.
Product Description

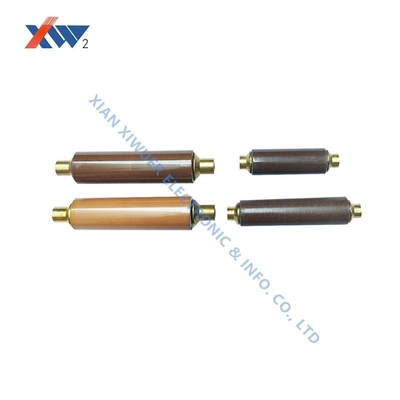

High Voltage Ceramic Capacitor Core Rod 7.2kV 40pF
Technical Specifications
| Attribute | Value |
|---|---|
| Rated Voltage | 7.2kVAC |
| Nominal Capacitance (pF) | 40pF |
| Nominal Capacitance Range (Test Frequency: 1kHz±20%, Test Voltage: 1V±0.2V) |
36~44 |
| Withstand Voltage (In insulating oil) | 41kVAC/5min |
| Partial Discharge | 7.92kVAC ≤10pC |
| Lightning Impulse kV1.2/5μs | 60 |
Product Features
- Designed for 3.6kV~40.5kV high voltage presence indicating devices
- Custom dimensions available per customer requirements
- Partial discharge ≤5pC at 1.1 times rated voltage (standard configuration)
- Compliant with DL/T538-2006 and JBT10305-2001 standards
Important Notes
Special attention required to prevent product damage, moisture exposure, and contamination.
For installations below 100 meters elevation or in high altitude areas, please specify in order notes.
