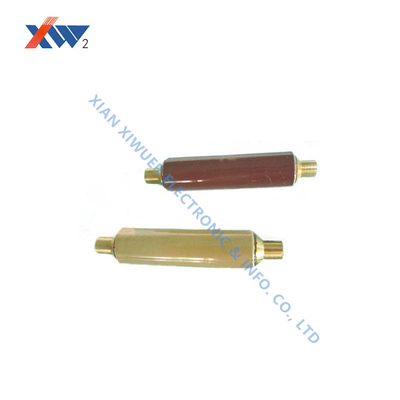

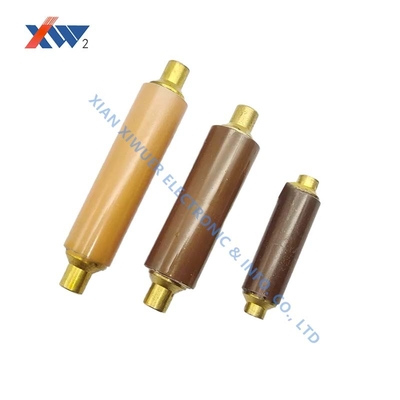

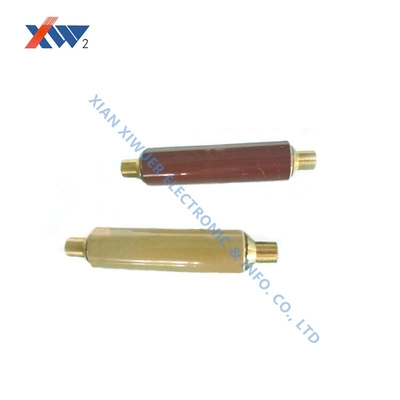

High voltage ceramic capacitor core rod 7.2kv 150pF
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Rated Voltage | 7.2kVAC | Nominal Capacitance(pF) | 150pF |
|---|---|---|---|
| Nominal Capacitance Range Test Frequency1kHz±20% Test Voltage1V±0.2 V | 140~170 | Withstand Voltage(In The Insulating Oil) | 41kVAC/5min |
| Partial Discharge | 7.92kVAC≤10pC | Lightning Impulse kV1.2/5μs | 60 |
You can tick the products you need and communicate with us in the message board.
Product Description
High Voltage Ceramic Capacitor Core Rod 7.2kV 150pF
Technical Specifications
| Attribute | Value |
|---|---|
| Rated Voltage | 7.2kVAC |
| Nominal Capacitance (pF) | 150pF |
| Nominal Capacitance Range (Test Frequency: 1kHz±20%, Test Voltage: 1V±0.2V) |
140~170 |
| Withstand Voltage (In insulating oil) | 41kVAC/5min |
| Partial Discharge | 7.92kVAC ≤10pC |
| Lightning Impulse kV1.2/5μs | 60 |
Product Features
- Designed for 3.6kV~40.5kV high voltage presence indicating devices
- Reliable performance under specified voltage conditions
- Precision capacitance values with tight tolerance range
- Excellent withstand voltage characteristics in insulating oil
- Minimal partial discharge at rated voltage
- Robust lightning impulse resistance
Important Instructions
PD not more than 5pC at 1.1 times rated voltage without special instructions.
Complies with standards:
- DL/T538-2006 (High Voltage Presence Indication Device)
- JBT10305-2001 (Technical conditions for post insulator of organic material in the 3.6kV~40.5kV high voltage equipment)
Custom dimensions available according to customer requirements.
Special attention: Prevent product from damage, moisture and contamination.
For installations below 100 meters or in high altitude areas, please indicate in order notes.
