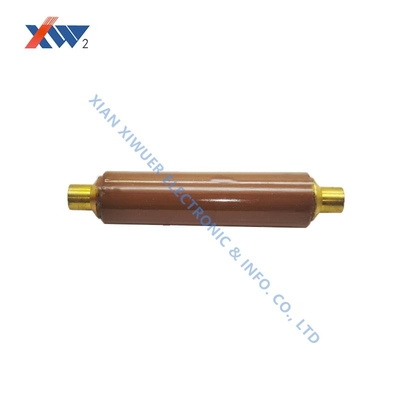

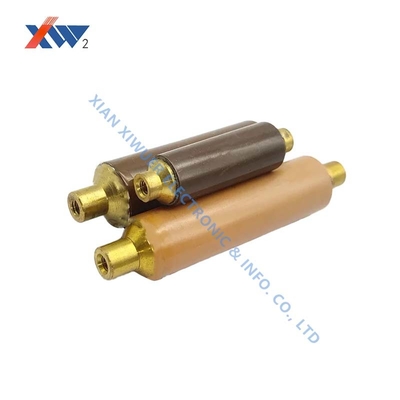

12kv High Voltage Ceramic Capacitor Core Rod with 20pF Nominal Capacitance and 1V Test Voltage

  • 12kv High Voltage Ceramic Capacitor Core Rod with 20pF Nominal Capacitance and 1V Test Voltage
  • 12kv High Voltage Ceramic Capacitor Core Rod with 20pF Nominal Capacitance and 1V Test Voltage
Place of Origin XIAN, CHINA
Brand Name XIWUER
Certification ISO9001,ISO14001,ISO45001
Model Number 12kv 20pF
Minimum Order Quantity 1
Price Negotiable
Packaging Details Carton
Delivery Time 5-7 days
Payment Terms L/C,T/T
Supply Ability 8,000,000 a year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Rated Voltage 12kVAC Nominal Capacitance(pF) 20
Nominal Capacitance RangeTest Frequency 1kHz+20%TestVoltage1V+0.2V 18~22 Withstand Voltage(In The Insulating Oil) 52kVAC/5min
Partial Discharge 13.2kVAC≤10pC Lightning Impulse KV1.2/5μs 75
Highlight

12kv Ceramic Capacitor Core Rod

,

20pF Ceramic Capacitor Core Rod
You can tick the products you need and communicate with us in the message board.
Leave a Message
Product Description
High Voltage Ceramic Capacitor Core Rod 12kV 20pF
Technical Specifications
Attribute Value
Rated Voltage 12kVAC
Nominal Capacitance (pF) 20
Nominal Capacitance Range
Test Frequency 1kHz ±20%
Test Voltage: 1V ±0.2V		 18~22
Withstand Voltage (In insulating oil) 52kVAC/5min
Partial Discharge 13.2kVAC ≤10pC
Lightning Impulse kV 1.2/5μs 75
Product Overview

This high voltage ceramic capacitor core rod is designed for use in 3.6kV to 40.5kV high voltage presence indicating devices.

Key Features
  • Rated Voltage: 12kVAC
  • Nominal Capacitance: 20pF
  • Withstands 52kVAC for 5 minutes in insulating oil
  • Low partial discharge (≤10pC at 13.2kVAC)
  • Robust lightning impulse withstand (75kV 1.2/5μs)
Important Notes

Partial discharge should not exceed 5pC at 1.1 times rated voltage unless otherwise specified.

Complies with standards DL/T538-2006 (High Voltage Presence Indication Device) and JB/T10305-2001 (Technical conditions for post insulator of organic material).

Custom dimensions available upon request.

Special care required: Protect from damage, moisture, and contamination.

For installations below 100 meters or in high altitude areas, please specify in order notes.
