High Voltage Ceramic Capacitor Core Rod 12kVAC 40pF With 52kVAC/5min With Stand Voltage

Name: High Voltage Ceramic Capacitor Core Rod 12kVAC 40pF With 52kVAC/5min With Stand Voltage
Brand: XIAN XIWUER ELECTRONIC AND INFO. CO., LTD
SKU: 12kv 40pF
Price: negotiable USD
Availability: InStock

Brand Name:	XIWUER
Model Number:	12kv 40pF
MOQ:	1
Price:	Negotiable
Payment Terms:	L/C,T/T
Supply Ability:	8,000,000 a year

Detail Information

Product Description

Detail Information

Place of Origin:

XIAN, CHINA

Certification:

ISO9001,ISO14001,ISO45001

Rated Voltage:

12kVAC

Nominal Capacitance(pF):

Nominal Capacitance RangeTest Frequency 1kHz+20%TestVoltage:1V+0.2V::

36~44

Withstand Voltage(In The Insulating Oil):

52kVAC/5min

Partial Discharge:

13.2kVAC≤10pC

Lightning Impulse KV1.2/5μs:

Packaging Details:

Carton

Supply Ability:

8,000,000 a year

Highlight:

40pF Ceramic Capacitor Core Rod

12kVAC Ceramic Capacitor Core Rod

Product Description

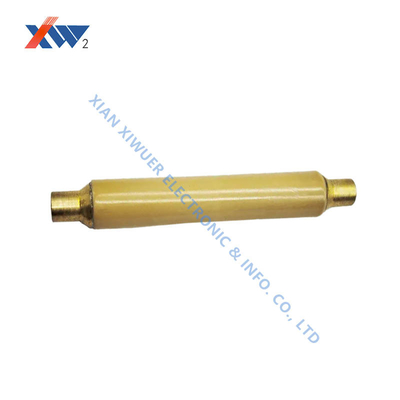

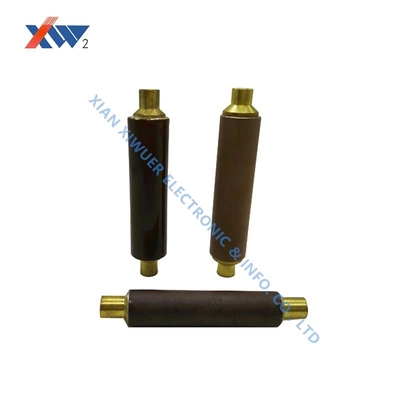

High Voltage Ceramic Capacitor Core Rod 12kV 40pF

Technical Specifications

Attribute	Value
Rated Voltage	12kVAC
Nominal Capacitance (pF)	40
Nominal Capacitance Range (Test Frequency 1kHz±20%, Test Voltage 1V±0.2V)	36~44
Withstand Voltage (In insulating oil)	52kVAC/5min
Partial Discharge	13.2kVAC ≤10pC
Lightning Impulse kV 1.2/5μs	75

Product Description

This high voltage ceramic capacitor core rod is designed for use in 3.6kV to 40.5kV high voltage presence indicating devices.

Key Features

Rated Voltage: 12kVAC
Nominal Capacitance: 40pF
Withstands 52kVAC for 5 minutes in insulating oil
Low partial discharge (≤10pC at 13.2kVAC)
High lightning impulse withstand (75kV 1.2/5μs)

Usage Instructions

Partial discharge should not exceed 5pC at 1.1 times rated voltage unless otherwise specified. Complies with standard DL/T538-2006 (High Voltage Presence Indication Device).

Dimensions can be customized according to customer requirements.

Special Note: Prevent product from damage, moisture, and contamination.

Complies with standard JB/T10305-2001 (Technical conditions for post insulator of organic material in 3.6kV-40.5kV high voltage equipment).

For installations below 100 meters or in high altitude areas, please specify in order notes.
