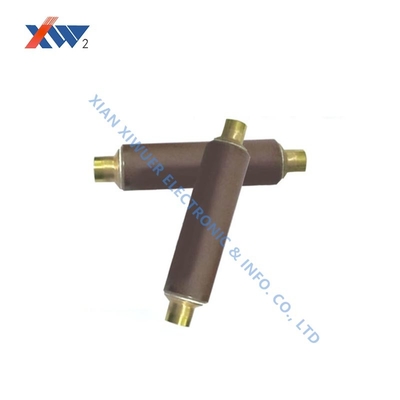

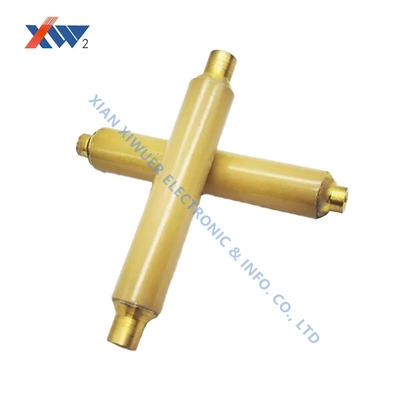

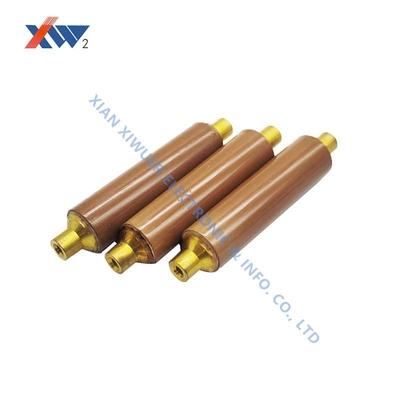

High voltage ceramic capacitor core rod 12kv 50pF

  • High voltage ceramic capacitor core rod 12kv 50pF
  • High voltage ceramic capacitor core rod 12kv 50pF
  • High voltage ceramic capacitor core rod 12kv 50pF
Place of Origin XIAN, CHINA
Brand Name XIWUER
Certification ISO9001,ISO14001,ISO45001
Model Number 12kv-50pF
Minimum Order Quantity 1
Price Negotiable
Packaging Details Carton
Delivery Time 5-7 days
Payment Terms L/C,T/T
Supply Ability 8,000,000 a year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Rated Voltage 12kVAC Nominal Capacitance(pF) 50pF
Nominal Capacitance RangeTest Frequency 1kHz+20%TestVoltage1V+0.2V 45~55 Withstand Voltage(In The Insulating Oil) 52kVAC/5min
Partial Discharge 13.2kVAC≤10pC Lightning Impulse KV1.2/5μs 75
Leave a Message
Product Description
High Voltage Ceramic Capacitor Core Rod 12kV 50pF
Product Specifications
Attribute Value
Rated Voltage 12kVAC
Nominal Capacitance (pF) 50pF
Nominal Capacitance Range (Test Frequency 1kHz ±20%, Test Voltage: 1V ±0.2V) 45~55
Withstand Voltage (In insulating oil) 52kVAC/5min
Partial Discharge 13.2kVAC ≤10pC
Lightning Impulse kV 1.2/5μs 75
Product Description

High voltage ceramic capacitor core rod designed for 3.6kV~40.5kV high voltage presence indicating devices.

Key Features
  • Rated Voltage: 12kVAC
  • Nominal Capacitance: 50pF
  • Withstand Voltage: 52kVAC/5min (in insulating oil)
  • Partial Discharge: ≤10pC at 13.2kVAC
  • Lightning Impulse: 75kV (1.2/5μs)
Usage Instructions

Partial discharge should not exceed 5pC at 1.1 times rated voltage unless otherwise specified.

Complies with standards DL/T538-2006 (High Voltage Presence Indication Device) and JBT10305-2001 (Technical conditions for post insulator of organic material in 3.6kV-40.5kV high voltage equipment).

Special attention: Prevent product from damage, moisture, and contamination.

Custom dimensions available upon request. For installations below 100 meters or in high altitude areas, please specify in order notes.
