High Voltage Ceramic Capacitor Core Rod 50pF 12kVAC Partial Discharge 13.2kVAC≤10pC For Power Systems

Brand Name:	XIWUER
Model Number:	12kv-50pF
MOQ:	1
Price:	Negotiable
Payment Terms:	L/C,T/T
Supply Ability:	8,000,000 a year

Detail Information

Product Description

Detail Information

Place of Origin:

XIAN, CHINA

Certification:

ISO9001,ISO14001,ISO45001

Rated Voltage:

12kVAC

Nominal Capacitance(pF):

50pF

Nominal Capacitance RangeTest Frequency 1kHz+20%TestVoltage:1V+0.2V::

45~55

Withstand Voltage(In The Insulating Oil):

52kVAC/5min

Partial Discharge:

13.2kVAC≤10pC

Lightning Impulse KV1.2/5μs:

Packaging Details:

Carton

Supply Ability:

8,000,000 a year

Highlight:

50pF 12kVAC Ceramic Capacitor

High Voltage Ceramic Capacitor Core Rod

Product Description

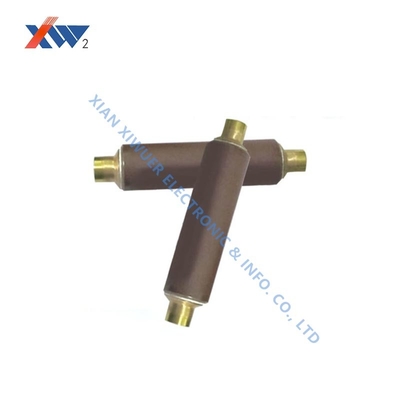

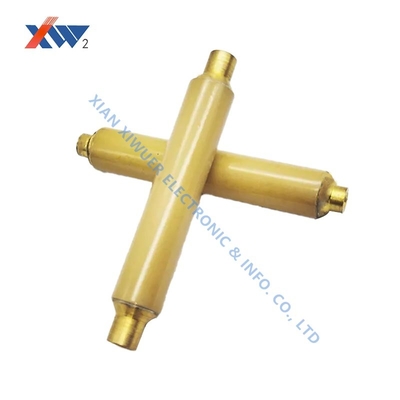

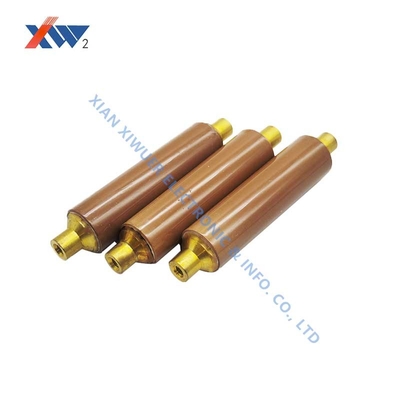

High Voltage Ceramic Capacitor Core Rod 12kV 50pF

Product Specifications

Attribute	Value
Rated Voltage	12kVAC
Nominal Capacitance (pF)	50pF
Nominal Capacitance Range (Test Frequency 1kHz ±20%, Test Voltage: 1V ±0.2V)	45~55
Withstand Voltage (In insulating oil)	52kVAC/5min
Partial Discharge	13.2kVAC ≤10pC
Lightning Impulse kV 1.2/5μs	75

Product Description

High voltage ceramic capacitor core rod designed for 3.6kV~40.5kV high voltage presence indicating devices.

Key Features

Rated Voltage: 12kVAC
Nominal Capacitance: 50pF
Withstand Voltage: 52kVAC/5min (in insulating oil)
Partial Discharge: ≤10pC at 13.2kVAC
Lightning Impulse: 75kV (1.2/5μs)

Usage Instructions

Partial discharge should not exceed 5pC at 1.1 times rated voltage unless otherwise specified.

Complies with standards DL/T538-2006 (High Voltage Presence Indication Device) and JBT10305-2001 (Technical conditions for post insulator of organic material in 3.6kV-40.5kV high voltage equipment).

Special attention: Prevent product from damage, moisture, and contamination.

Custom dimensions available upon request. For installations below 100 meters or in high altitude areas, please specify in order notes.
