180-210 Nominal Capacitance Range 12kVAC Ceramic Capacitor Core Rod for 1kHz 20% Test Frequency and 1V 0.2V Test Voltage

Brand Name:	XIWUER
Model Number:	12kv-200pF
MOQ:	1
Price:	Negotiable
Payment Terms:	L/C,T/T
Supply Ability:	8,000,000 a year

Detail Information

Product Description

Detail Information

Place of Origin:

XIAN, CHINA

Certification:

ISO9001,ISO14001,ISO45001

Rated Voltage:

12kVAC

Nominal Capacitance(pF):

200

Nominal Capacitance RangeTest Frequency 1kHz+20%TestVoltage:1V+0.2V::

180~210

Withstand Voltage(In The Insulating Oil):

52kVAC/5min

Partial Discharge:

13.2kVAC≤10pC

Lightning Impulse KV1.2/5μs:

Packaging Details:

Carton

Supply Ability:

8,000,000 a year

Highlight:

1kHz Ceramic Capacitor Core Rod

12kVAC Ceramic Capacitor Core Rod

Product Description

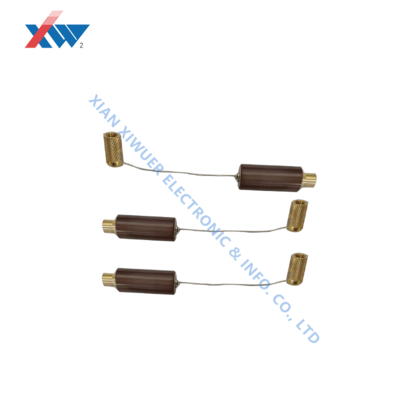

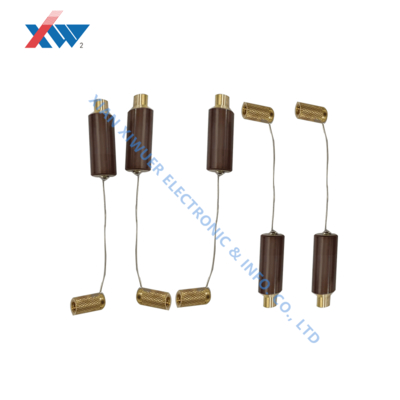

High voltage ceramic capacitor core rod 12kv 200pF

Application:
Itisusedfor3.6kV~40.5kVhighvoltagepresenceindicatingdevice......

Feature:
Rated Voltage:12kVAC
Nominal Capacitance(pF):200
Nominal Capacitance RangeTest Frequency:1kHz+20%TestVoltage:1V+0.2V:180~210
Withstand Voltage(In the insulating oil):52kVAC/5min
Partial Discharge:13.2kVAC≤10pC
Lightning Impulse kV1.2/5μs:75

For Instructions:

PD not more than 5pC at 1.1 times rated voltage without special instructions. Comply with the standard DL /T538-2006(High Voltage Presence Indication Device).
The dimensions can be made according to customer requirements.
Special attention: Prevent the product from damage, moisture and contamination.
Comply with the standard JBT10305-2001(Technical conditions for post insulator of organic material in the 3.6kV40.5kV high voltage equipment at customers end).
For areas below 100 meters or in high altitude areas, please indicate it in the order notes.
