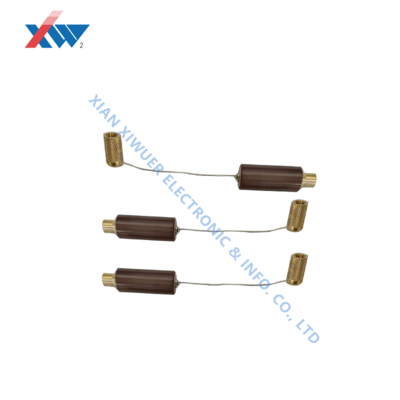

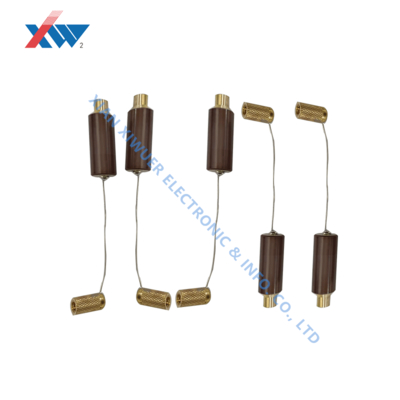

High voltage ceramic capacitor core rod 12kv 200pF

  • High voltage ceramic capacitor core rod 12kv 200pF
  • High voltage ceramic capacitor core rod 12kv 200pF
Place of Origin XIAN, CHINA
Brand Name XIWUER
Certification ISO9001,ISO14001,ISO45001
Model Number 12kv-200pF
Minimum Order Quantity 1
Price Negotiable
Packaging Details Carton
Delivery Time 5-7 days
Payment Terms L/C,T/T
Supply Ability 8,000,000 a year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Rated Voltage 12kVAC Nominal Capacitance(pF) 200
Nominal Capacitance RangeTest Frequency 1kHz+20%TestVoltage1V+0.2V 180~210 Withstand Voltage(In The Insulating Oil) 52kVAC/5min
Partial Discharge 13.2kVAC≤10pC Lightning Impulse KV1.2/5μs 75
You can tick the products you need and communicate with us in the message board.
Leave a Message
Product Description

High voltage ceramic capacitor core rod 12kv 200pF

Application:
Itisusedfor3.6kV~40.5kVhighvoltagepresenceindicatingdevice......

Feature:
Rated Voltage:12kVAC
Nominal Capacitance(pF):200
Nominal Capacitance RangeTest Frequency:1kHz+20%TestVoltage:1V+0.2V:180~210
Withstand Voltage(In the insulating oil):52kVAC/5min
Partial Discharge:13.2kVAC≤10pC
Lightning Impulse kV1.2/5μs:75


For Instructions:

PD not more than 5pC at 1.1 times rated voltage without special instructions. Comply with the standard DL /T538-2006(High Voltage Presence Indication Device).
The dimensions can be made according to customer requirements.
Special attention: Prevent the product from damage, moisture and contamination.
Comply with the standard JBT10305-2001(Technical conditions for post insulator of organic material in the 3.6kV40.5kV high voltage equipment at customers end).
For areas below 100 meters or in high altitude areas, please indicate it in the order notes.
