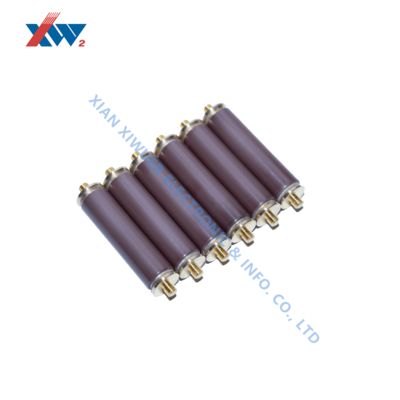

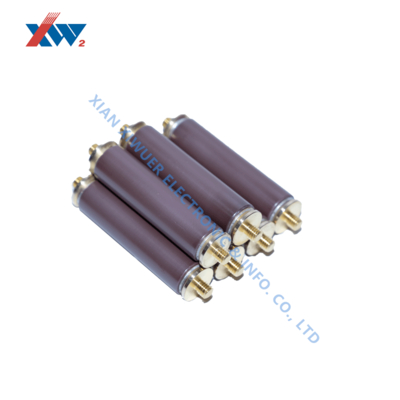

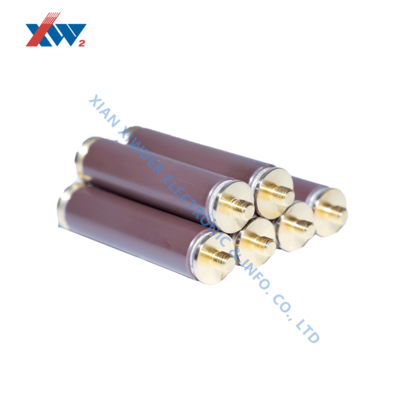

12kVAC 300pF High Voltage Ceramic Capacitor Core Rod

  • 12kVAC 300pF High Voltage Ceramic Capacitor Core Rod
  • 12kVAC 300pF High Voltage Ceramic Capacitor Core Rod
  • 12kVAC 300pF High Voltage Ceramic Capacitor Core Rod
  • 12kVAC 300pF High Voltage Ceramic Capacitor Core Rod
Place of Origin XIAN, CHINA
Brand Name XIWUER
Certification ISO9001,ISO14001,ISO45001
Model Number 12kV-300pF
Minimum Order Quantity 1
Price Negotiable
Packaging Details Carton
Delivery Time 5-7 days
Payment Terms L/C,T/T
Supply Ability 8,000,000 a year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Rated Voltage 12kVAC Nominal Capacitance(pF) 300
Nominal Capacitance RangeTest Frequency 1kHz+20%TestVoltage1V+0.2V 270~330 Withstand Voltage(In The Insulating Oil) 52kVAC/5min
Partial Discharge 13.2kVAC≤10pC Lightning Impulse KV1.2/5μs 75
Highlight

12kVAC high voltage ceramic capacitor

,

300pF ceramic capacitor core rod

,

high voltage capacitor with warranty
Leave a Message
Product Description
12kVAC 300pF High Voltage Ceramic Capacitor Core Rod
Technical Specifications
Attribute Value
Rated Voltage 12kVAC
Nominal Capacitance (pF) 300
Nominal Capacitance Range (Test Frequency 1kHz+20%, Test Voltage: 1V+0.2V) 270~330
Withstand Voltage (In the insulating oil) 52kVAC/5min
Partial Discharge 13.2kVAC≤10pC
Lightning Impulse kV1.2/5μs 75
Product Features
  • High voltage ceramic capacitor core rod rated at 12kVAC with 300pF nominal capacitance
  • Wide capacitance range: 270~330pF at test conditions
  • Excellent withstand voltage: 52kVAC/5min in insulating oil
  • Low partial discharge: ≤10pC at 13.2kVAC
  • High lightning impulse resistance: 75kV at 1.2/5μs
Application Areas

Designed for live display devices in 10kV-40.5kV power systems, this capacitor provides real-time indication of the operating status of:

  • High-voltage conductors
  • Circuit breakers (SF6 and vacuum types)
  • Lightning arresters
  • Instrument transformers

Ensures operator safety with typical parameters including capacitance ranges from 10pF-230pF (e.g., 90pF at 24kV), withstand voltage of 68kV (power frequency) and 125kV (lightning impulse).

Installation & Usage Instructions

PD not more than 5pC at 1.1 times rated voltage without special instructions. Comply with standard DL/T538-2006 (High Voltage Presence Indication Device).

Dimensions can be customized according to customer requirements.

Special attention required to prevent product damage, moisture exposure, and contamination.

Complies with standard JBT10305-2001 (Technical conditions for post insulator of organic material in the 3.6kV-40.5kV high voltage equipment).

For installations below 100 meters or in high altitude areas, please specify in order notes.
