24kV 5pF High Voltage Ceramic Capacitor Core Rod
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Highlight | 24kV high voltage ceramic capacitor,5pF ceramic capacitor core rod,high voltage capacitor with warranty |
||
|---|---|---|---|
You can tick the products you need and communicate with us in the message board.
Product Description

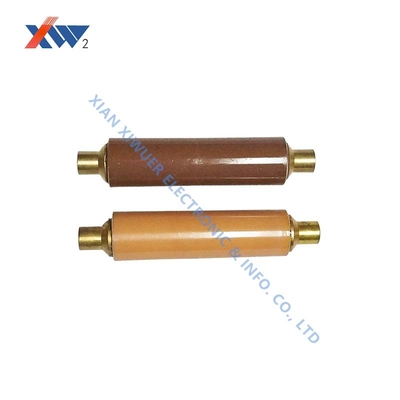

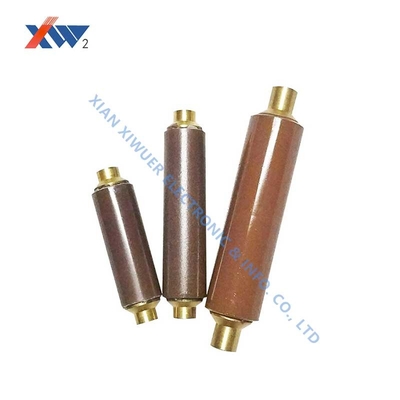

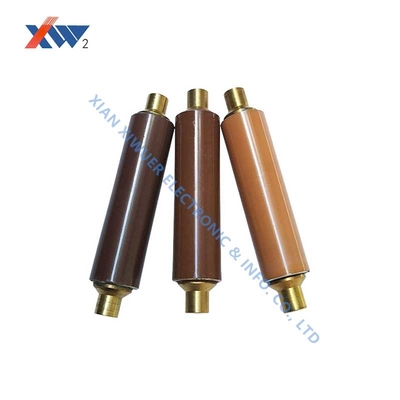

High Voltage Ceramic Capacitor Core Rod 24kV 5pF
Key Specifications
- Rated Voltage: 24kV AC
- Nominal Capacitance: 5pF
- Capacitance Range (Test Frequency 1kHz, Test Voltage 1V±0.2V): 4~6pF
- Withstand Voltage (in insulating oil): 70kV AC/5min
- Partial Discharge: ≤10pC at 26.4kV AC
- Lightning Impulse (1.2/5μs): 125kV
Application Areas
Designed for live display devices in 10kV-40.5kV power systems, this component provides real-time indication of operating status for:
- High-voltage conductors
- Circuit breakers (SF6 and vacuum types)
- Lightning arresters
- Instrument transformers
Typical parameters include capacitance ranges from 10pF-230pF (e.g., 90pF at 24kV), with withstand voltages of 68kV (power frequency) and 125kV (lightning impulse).
Usage Instructions
Partial Discharge: ≤5pC at 1.1 times rated voltage (unless otherwise specified)
Standards Compliance: DL/T538-2006 (High Voltage Presence Indication Device) and JBT10305-2001 (Technical conditions for post insulator of organic material)
Customization: Dimensions can be manufactured to customer requirements
Special Notes: For installations below 100 meters or in high altitude areas, please specify in order notes
Important: Protect product from physical damage, moisture, and contamination during handling and installation.
