High Voltage Ceramic Capacitor Core Rod 24kV 5pF for Heavy Duty Applications

Brand Name:	XIWUER
Model Number:	24kv - 5pF
MOQ:	1
Price:	Negotiable
Payment Terms:	L/C,T/T
Supply Ability:	8,000,000 a year

Detail Information

Product Description

Detail Information

Place of Origin:

XIAN, CHINA

Certification:

ISO9001,ISO14001,ISO45001

Packaging Details:

Carton

Supply Ability:

8,000,000 a year

Highlight:

Rod Heavy Duty Ceramic Capacitor

24kV Heavy Duty Ceramic Capacitor

5pF Heavy Duty Ceramic Capacitor

Product Description

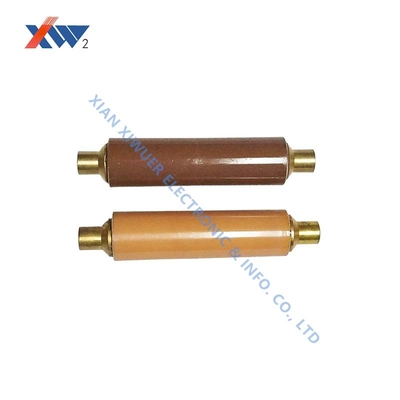

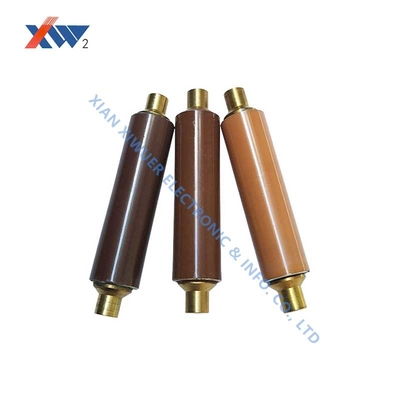

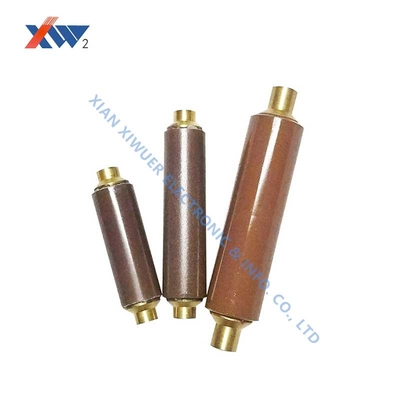

High Voltage Ceramic Capacitor Core Rod 24kV 5pF

Key Specifications

Rated Voltage: 24kV AC
Nominal Capacitance: 5pF
Capacitance Range (Test Frequency 1kHz, Test Voltage 1V±0.2V): 4~6pF
Withstand Voltage (in insulating oil): 70kV AC/5min
Partial Discharge: ≤10pC at 26.4kV AC
Lightning Impulse (1.2/5μs): 125kV

Application Areas

Designed for live display devices in 10kV-40.5kV power systems, this component provides real-time indication of operating status for:

High-voltage conductors
Circuit breakers (SF6 and vacuum types)
Lightning arresters
Instrument transformers

Typical parameters include capacitance ranges from 10pF-230pF (e.g., 90pF at 24kV), with withstand voltages of 68kV (power frequency) and 125kV (lightning impulse).

Usage Instructions

Partial Discharge: ≤5pC at 1.1 times rated voltage (unless otherwise specified)

Standards Compliance: DL/T538-2006 (High Voltage Presence Indication Device) and JBT10305-2001 (Technical conditions for post insulator of organic material)

Customization: Dimensions can be manufactured to customer requirements

Special Notes: For installations below 100 meters or in high altitude areas, please specify in order notes

Important: Protect product from physical damage, moisture, and contamination during handling and installation.
